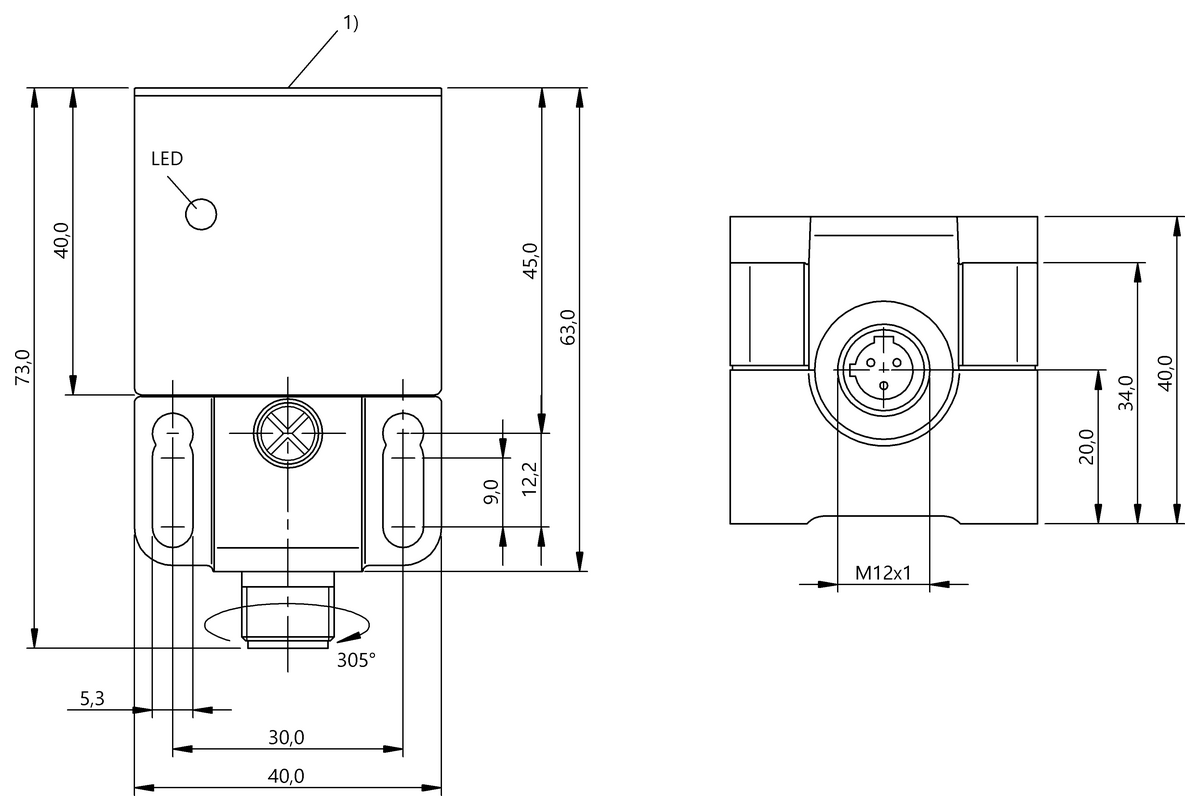

BES0212 (BES Q40KEU-UOU15B-S27G) - Inductive proximity switches and proximity sensors - Dimension: 73 x 40 x 40 mm, Style Housing: 40x40, Installation: for flush mounting, Range: 15 mm, Switching output: normally closed (NC), Switching frequency: 100 Hz, Housing material: PBT, Zinc, Die casting, Material sensing surface: PBT, Connection: Connector, M12x1-Male, Operating voltage Ub: 20...250 VDC/20...250 VAC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, EAC
Style Housing
40x40
Installation
for flush mounting
Range
15 mm
Switching output
normally closed (NC)
Switching frequency
100 Hz
Housing material
PBTZinc, Die casting
Material sensing surface
PBT
Connection
Connector, M12x1-Male
Operating voltage Ub
20...250 VDC/20...250 VAC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEEAC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Tariff Code
85365019
