Murrelektronik

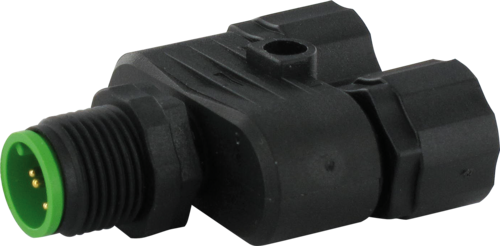

T-Coupler M12 female / M12 male+female shielded
Цена без НДС
Запросить цену
T-coupler Female straight – female/male straight Shielded Plastic housings with good resistance against chemicals and oils. The resistance to aggressive...
Вес
0,034 kg
Страна происхождения
DE
Обозначение модели
MSB0208DL0-AC-BU-ZE
Family construction form
M12

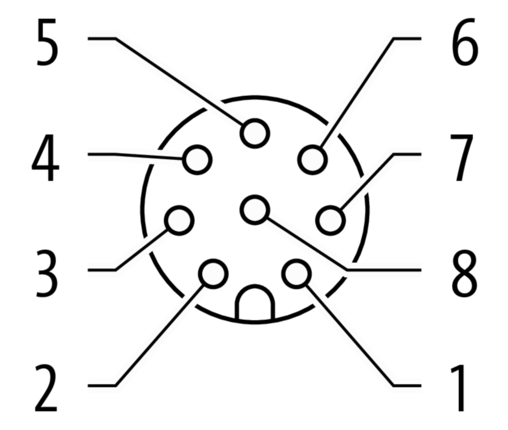

No. of poles
8
Coding
A
Gender
female
Mounting method
inserted, screwed, Shaking protection
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW13
Material contact
Copper alloy
Degree of protection (EN IEC 60529)
IP67
Operating voltage AC max.
30 V
Operating voltage DC max.
30 V
