Murrelektronik
T-Coupler M12 male / M12 female A-cod.
Price excluding VAT
Request a quote
T-coupler Male straight – females straight M12 – M12, 5-pole Distribution function (NO) Plastic housings with good resistance against chemicals and oils....
Weight
0,020 kg
Country of origin
DE
Model designation
MSA02UL0-BU-BU
Family construction form
M12

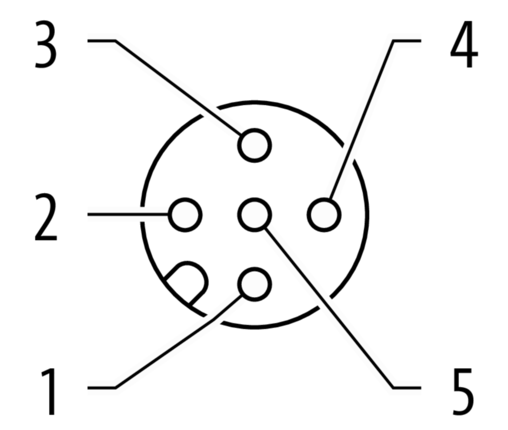

No. of poles
5
Coding
A
Gender
male
Mounting method
inserted, screwed, Shaking protection
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW 13
Degree of protection (EN IEC 60529)
IP67
Operating voltage AC max.
60 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
