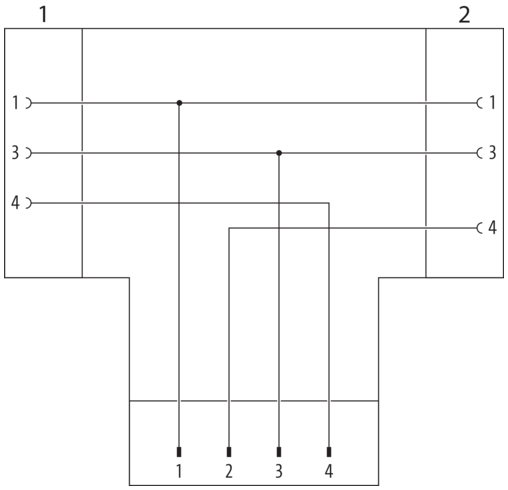

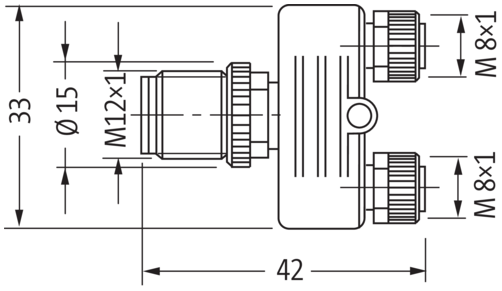

T-coupler Male straight – females straight M12, 4-pole – M8, 3-pole Distribution function (NO) Plastic housings with good resistance against chemicals...
Вес
0,021 kg
Страна происхождения
DE
Обозначение модели
MSA02TL0-FR-FR
Family construction form
M12

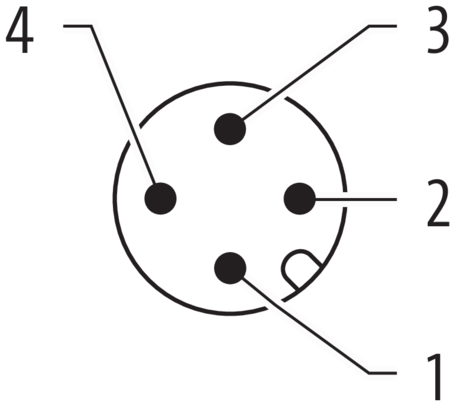

No. of poles
4
Coding
A
Gender
male
Mounting method
Schraubgewinde
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW13
Degree of protection (EN IEC 60529)
IP67
Operating voltage AC max.
50 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
