Murrelektronik
MDC06-4s / MDC06-2s LED+FWD (Pin 3+4)
Hind käibemaksuta
Küsi pakkumist

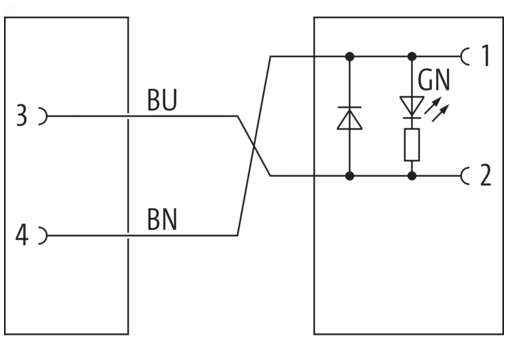

Xtreme - Outdoor Male straight – male straight 2-pole 12...24 V DC Flyback diode + LED with cable sleeves compatibel to Deutsch DT06-2S compatibel to...
Kaal
0,110 kg
Päritoluriik
DE
Mudeli tähistus
MSTD4L0-TD2L7-*754_2.0-S72
Cable length
2,00 m
Family construction form
Amphenol AT06-2S

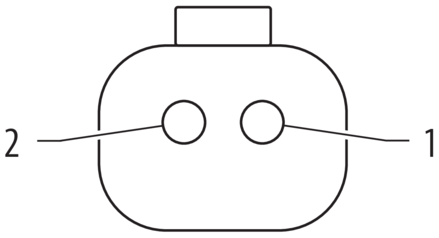

No. of poles
2
Mounting method
inserted
suitable for corrugated tube (internal Ø)
10 mm
Material contact
Copper alloy
Coating contact
nickel plated
Operating voltage DC min.
12 V
Operating voltage DC max.
24 V
Current operating per contact max.
8 A
Status indication LED
green
Degree of protection (EN IEC 60529)
IP68
