Murrelektronik
M12 Xtreme male 0° A-cod. / MSUD valve plug A-18mm
Price excluding VAT
Request a quote

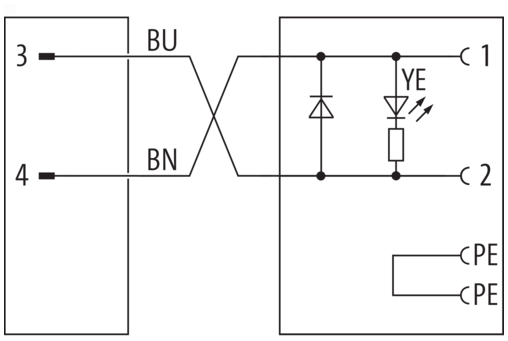

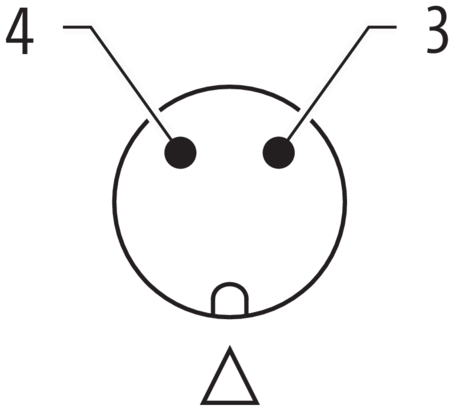

Xtreme - Outdoor MSUD Form A (18 mm) 4-pole Male M12 straight 2-pole 12...24 V AC/DC Flyback diode + LED Stainless steel 1.4305 (V2A)
Weight
0,083 kg
Country of origin
CZ
Model designation
MSKLK-A-P754_1.0-S72
Cable length
1,00 m
Family construction form

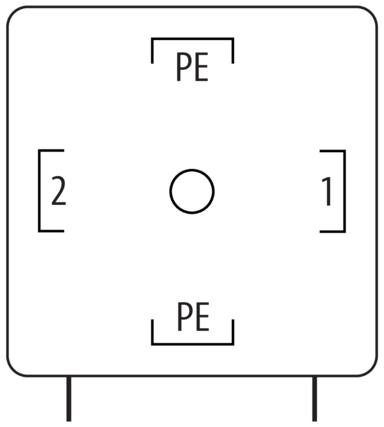

Valve connector form A
No. of poles
2
Coding
A
Threaded hole
M3x31
Tightening torque
0,4 Nm
Width across flats
SW14
suitable for corrugated tube (internal Ø)
10 mm
Material
PBT
Material contact
Copper alloy
Coating contact
silver-plated
Degree of protection (EN IEC 60529)
IP68, IP66K, IP65
