Murrelektronik

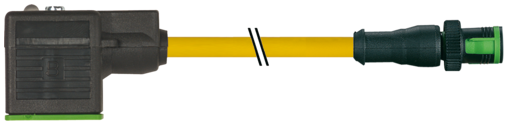

EOL - MQ12 male 0° / MSUD valve plug A-18mm
Hind käibemaksuta
Küsi pakkumist

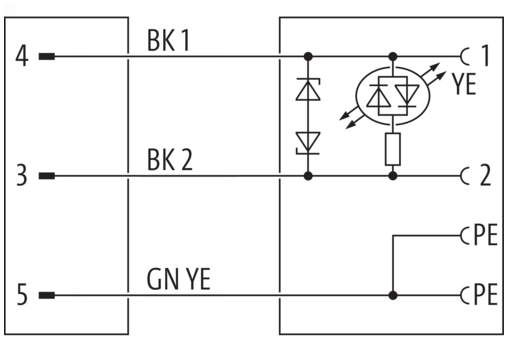

MSUD Form A (18 mm) Male straight MQ12 24 V AC ±20% / DC ±25% LED and suppression Bridged PE Further cable lengths on request. Plastic housings with good...
Kaal
0,084 kg
Päritoluriik
CZ
Mudeli tähistus
MSKL3-A-W616_0.7-S50_lo

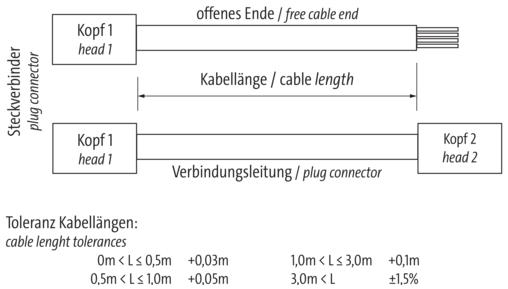

Cable length
0,70 m
Family construction form
M8
Coding
A
Threaded hole
M12 x 1
Tightening torque
0,4 Nm
Degree of protection (EN IEC 60529)
IP67, IP65
Operating voltage AC
24 V
Operating voltage AC min.
19,2 V
Operating voltage AC max.
28,8 V
Operating voltage DC
24 V
Operating voltage DC min.
18 V
Operating voltage DC max.
30 V
