Murrelektronik

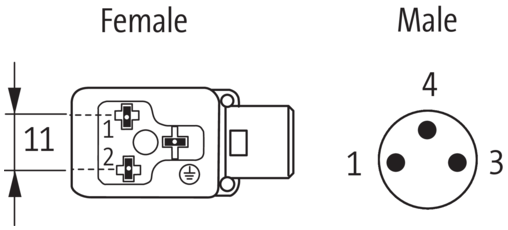

M8 male 0° A-cod. / MSUD valve plug BI-11mm
Price excluding VAT
Request a quote
Form BI (11 mm) Male M8 straight 50 V AC/60 V DC, M8 (3-pole) 3-pole without components Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request Further...
Weight
0,049 kg
Country of origin
CZ
Model designation
MSLL0-H-R613_0.3
Cable length
0,30 m
Family construction form
M8
No. of poles
3
Mounting method
inserted, screwed
Threaded hole
M8 x 1
Tightening torque
0,4 Nm
suitable for corrugated tube (internal Ø)
6,5 mm
Material
PBT
Material contact
Copper alloy
Coating contact
gold plated
Degree of protection (EN IEC 60529)
IP67
Width across flats
SW9
