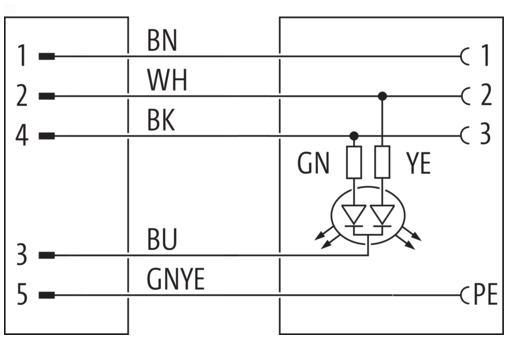

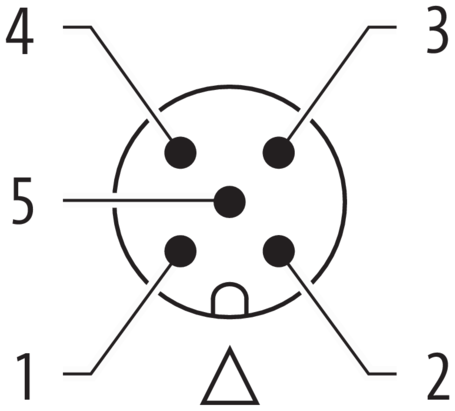

MSUD Form A (18 mm) – M12, male straight 24 V DC ±25% LED (yellow/green) for pressure switches Attention: Contact carrier turned to 180°! Art-No. 7005 -...
Вес
0,070 kg
Страна происхождения
CZ
Обозначение модели
MSOLI-A-U035_0.6
Cable length
0,60 m
Family construction form

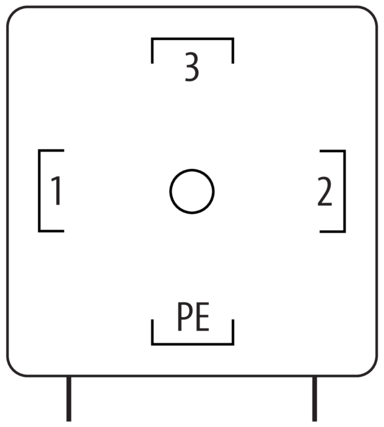

Valve connector form A
No. of poles
4
Coding
A
Mounting method
inserted, screwed
Threaded hole
M3x31
Tightening torque
0,4 Nm
Width across flats
SW13
suitable for corrugated tube (internal Ø)
10 mm
Material
PBT
Degree of protection (EN IEC 60529)
IP67
Operating voltage DC
24 V
