Murrelektronik

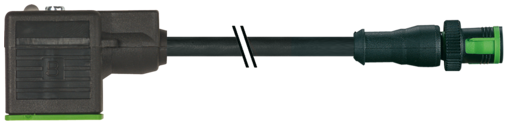

EOL - M12 male 0° A-cod. / MSUD valve plug A-18mm
Price excluding VAT
Request a quote
⚠ NOTICE ⚠ PRODUCT IS DISCONTINUED. PLEASE HAVE A LOOK AT THE ALTERNATIVE PRODUCTS. Form A (18 mm) – M12, male straight 24 V DC ±25% LED...
Weight
0,075 kg
Country of origin
CZ
Model designation
MSZLB-A-U225_0.6
Cable length
0,6 m
Tightening torque
0,6 Nm
Family construction form
M12
Thread
M12 x 1
Degree of protection (EN IEC 60529)
IP67
Width across flats
SW13
Operating voltage DC
24 V
Operating voltage DC min.
18 V
Operating voltage DC max.
30 V
Current operating per contact max.
4 A
Additional condition protection degree
inserted, screwed
Pollution Degree
3
