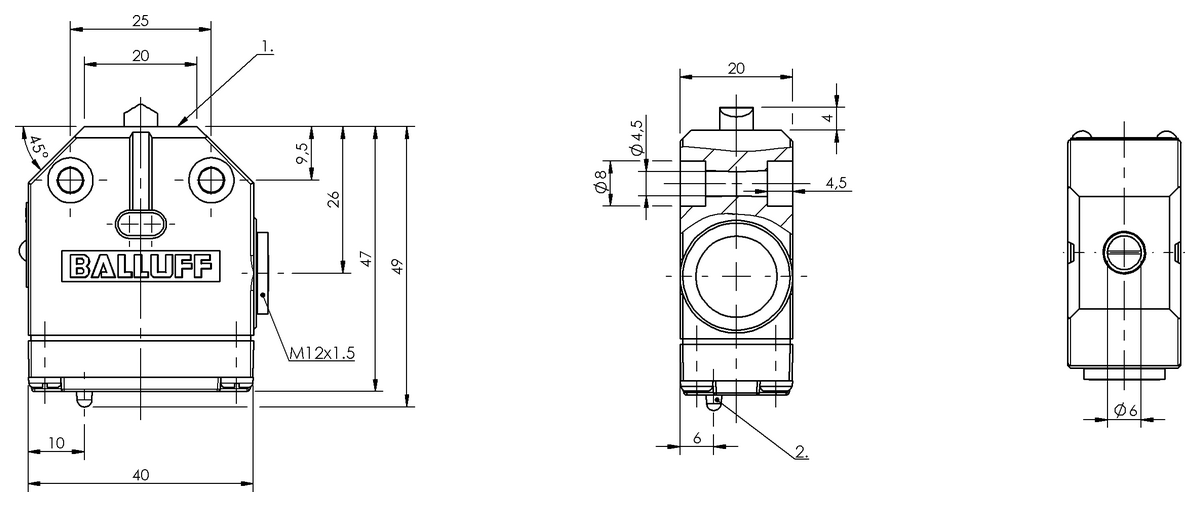

BNS03UC (BNS 819-99-D-11-FC) - Mechanical single position limit switches - Dimension: 40 x 20 x 43 mm, Housing material: Aluminium, Anodized, Number of switching positions: 1x Chisel, Version: Snap contact, Operating principle: 1. Switch position: Mechanical, Continuous current: 1. Switch position: 5 A, Rated operating voltage Ue: 1. Switch position: 250 V AC, Approach direction: lateral or at right angles to mounting surface, Approach speed: 1. Switch position: 20 m/min, Connection type: 1. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, CCC, WEEE
Housing material
Aluminium, Anodized
Number of switching positions
1x Chisel
Version
Snap contact
Operating principle
1. Switch position: Mechanical
Continuous current
1. Switch position: 5 A
Rated operating voltage Ue
1. Switch position: 250 V AC
Approach direction
lateral or at right angles to mounting surface
Approach speed
1. Switch position: 20 m/min
Connection type
1. Switch position: Screw terminal
Ambient temperature
-5...85 °C
IP rating
IP67
Approval/Conformity
CEUKCACCCWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Manual
BNS 99/100 819/813 | (German, English)
Tariff Code
85365080
Disposal instructions
Download
