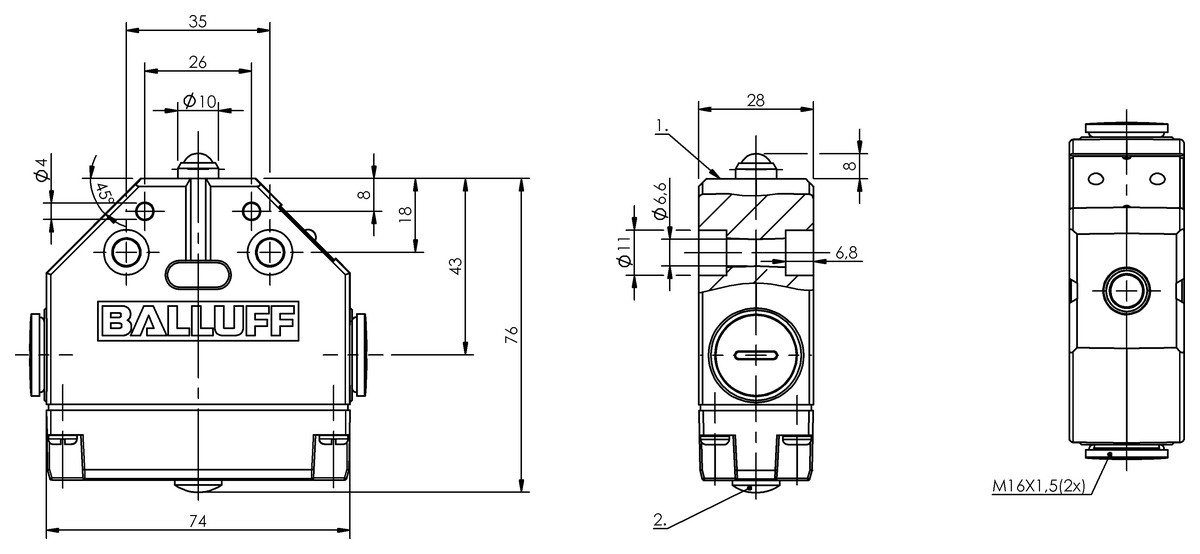

BNS0006 (BNS 819-FK-60-101-FD) - Mechanical single position limit switches - List price Deutschland: 95,79 EUR - Dimension: 74 x 28 x 76.5 mm, Housing material: Aluminium, Anodized, Number of switching positions: 1x Ball, Version: Snap contact, Operating principle: 1. Switch position: Mechanical, Continuous current: 1. Switch position: 6 A, Rated operating voltage Ue: 1. Switch position: 250 V AC, Installation: any, Approach direction: any, Approach speed: 1. Switch position: 10 m/min, Connection type: 1. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, CCC, WEEE
Housing material
Aluminium, Anodized
Number of switching positions
1x Ball
Version
Snap contact
Operating principle
1. Switch position: Mechanical
Continuous current
1. Switch position: 6 A
Rated operating voltage Ue
1. Switch position: 250 V AC
Installation
any
Approach direction
any
Approach speed
1. Switch position: 10 m/min
Connection type
1. Switch position: Screw terminal
Ambient temperature
-5...85 °C
IP rating
IP67
Approval/Conformity
CEUKCACCCWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Manual
BNS F60 819/813 | (German)
Tariff Code
85365080
Substances of concern
Download
Disposal instructions
Download
Juhendid, CAD-mudelid, sertifikaadid ja muud materjalid on tootja veebisaidil:
Ava toote leht tootja veebisaidil
