BNS 813-D10-R12-100-55-FD-0324

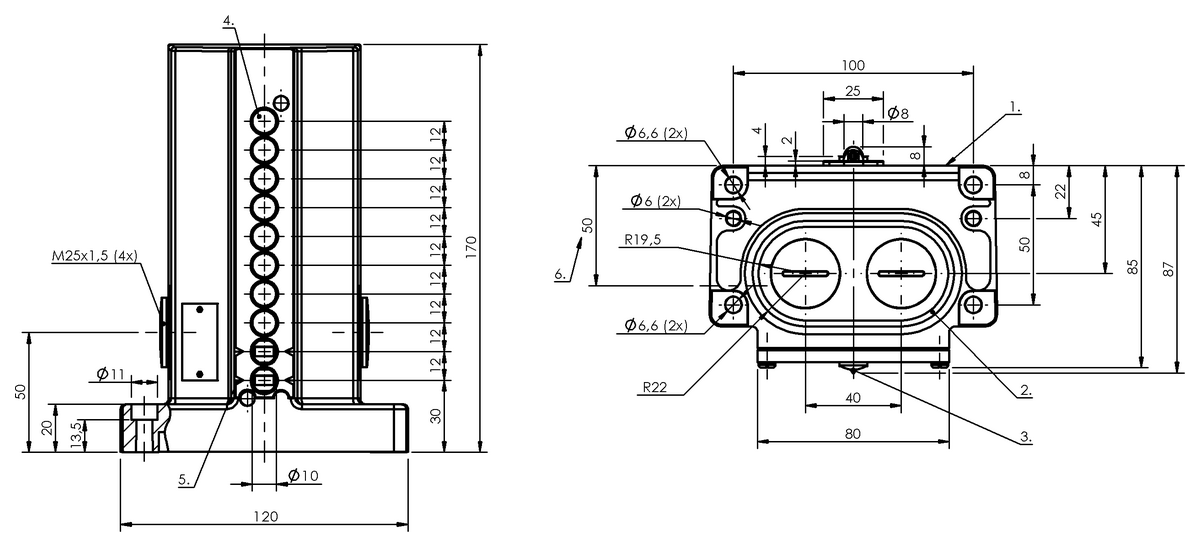

BNS017U (BNS 813-D10-R12-100-55-FD-0324) - Mechanical multiple position limit switches with safety switch positions - Dimension: 120 x 170 x 87 mm, Housing material: Aluminium, Anodized, Number of switching positions: 10x Roller, Version: Safety EN 60204-1, Operating principle: 1-2. Switch position: Mechanical, 3-10. Switch position: Inductive, Continuous current: 1-2. Switch position: 6 A, 3-10. Switch position: 0.2 A, Rated operating voltage Ue: 1-2. Switch position: 250 V AC, 3-10. Switch position: 24 V DC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-2. Switch position: 60 m/min, Switch position spacing: 12 mm, Connection type: 1-10. Switch position: Screw terminal, Ambient temperature: -5...70 °C, IP rating: IP67, Approval/Conformity: CE, CCC, WEEE
