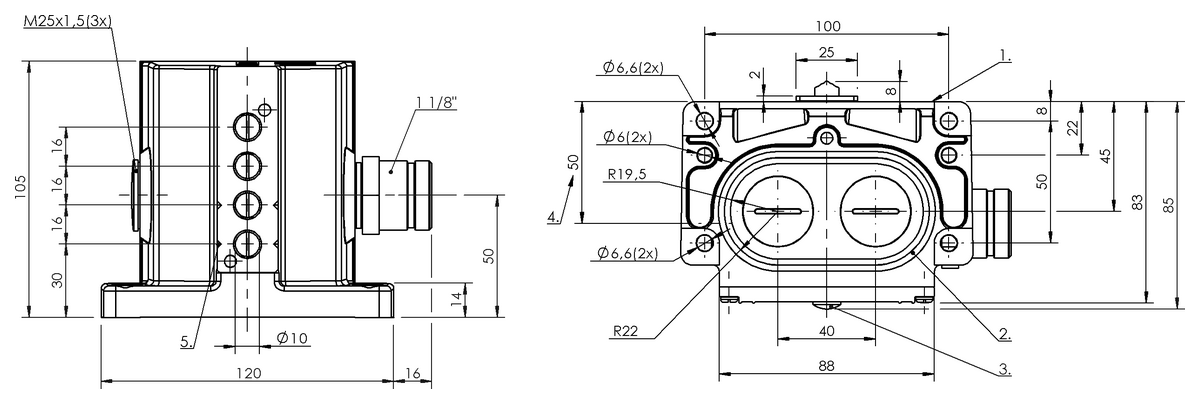

BNS00YZ (BNS 813-D04-D16-100-20-02-FD-S90R) - Mechanical multiple position limit switches with safety switch positions - Dimension: 120 x 105 x 85 mm, Housing material: Aluminium, Anodized, Number of switching positions: 4x Chisel, Version: Safety EN 60204-1, Operating principle: 1-4. Switch position: Mechanical, Continuous current: 1-4. Switch position: 5 A, Rated operating voltage Ue: 1-3. Switch position: 6…60 V, 4. Switch position: 30 V AC/36 V DC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-4. Switch position: 40 m/min, Switch position spacing: 16 mm, Connection type: 1. Switch position: Connector, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, WEEE
