BNS 813-D02-D12-100-55-0177

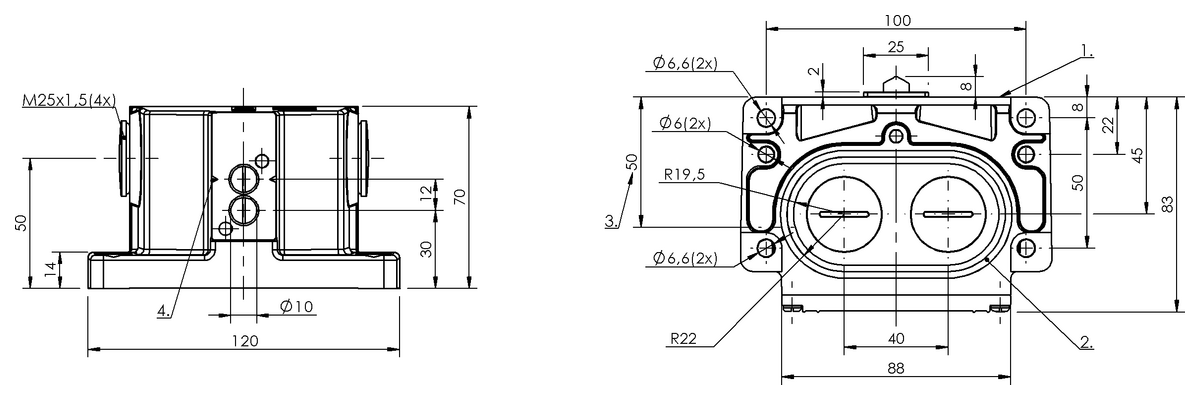

BNS00R1 (BNS 813-D02-D12-100-55-0177) - Mechanical multiple position limit switches with safety switch positions - Dimension: 120 x 70 x 83 mm, Housing material: Aluminium, Anodized, Number of switching positions: 2x Chisel, Version: Safety EN 60204-1, Operating principle: 1-2. Switch position: Mechanical, Continuous current: 1-2. Switch position: 6 A, Rated operating voltage Ue: 1-2. Switch position: 250 V AC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-2. Switch position: 40 m/min, Switch position spacing: 12 mm, Connection type: 1-2. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, WEEE
