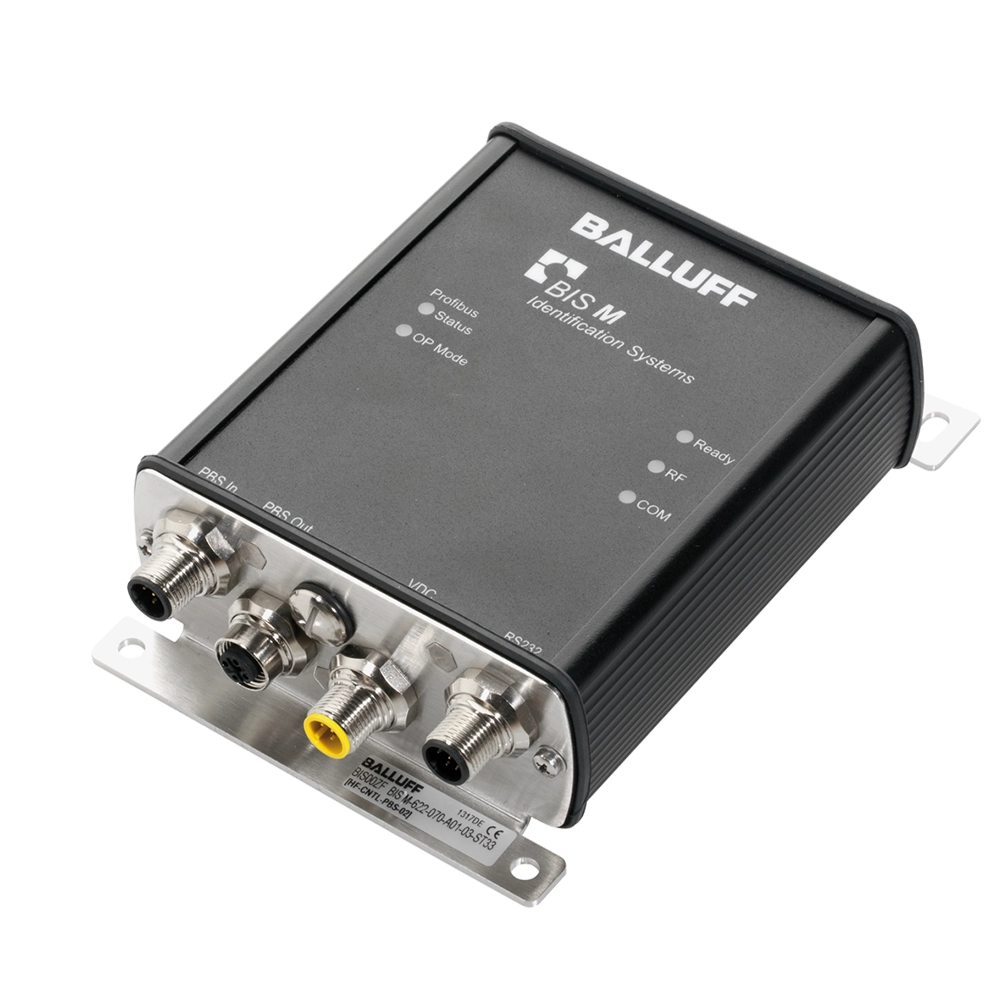

BIS00ZL (BIS M-620-067-A01-04-S92) - HF RFID processors (13.56 MHz) - Product group: HF (13.56 MHz), Interface: RS485, Supported RFID technologies: HF 13.56 MHz (BIS M), Number of connectable R/W heads / antennas: 1, Operating voltage Ub: 19.2...28.8 VDC, Housing material: Aluminium, Ambient temperature: -20...50 °C, IP rating: IP65, with connector, Approval/Conformity: CE, UKCA, cULus, WEEE, Connection: M12x1-Male, 5-pin
Product group
HF (13.56 MHz)
Interface
RS485
Supported RFID technologies
HF 13.56 MHz (BIS M)
Number of connectable R/W heads / antennas
1
Operating voltage Ub
19.2...28.8 VDC
Housing material
Aluminium
Ambient temperature
-20...50 °C
IP rating
IP65, with connector
Approval/Conformity
CEUKCAcULusWEEE
Connection
M12x1-Male, 5-pin
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Manual
BIS M-62_ PROCESSOR UNIT | (English) | CBx Protocol | BIS Dashboard | BIS C-Macro Builder | BIS M-620-067-A01-04-S_ | (English)
Tariff Code
85437090
Substances of concern
Download
Disposal instructions
Download
