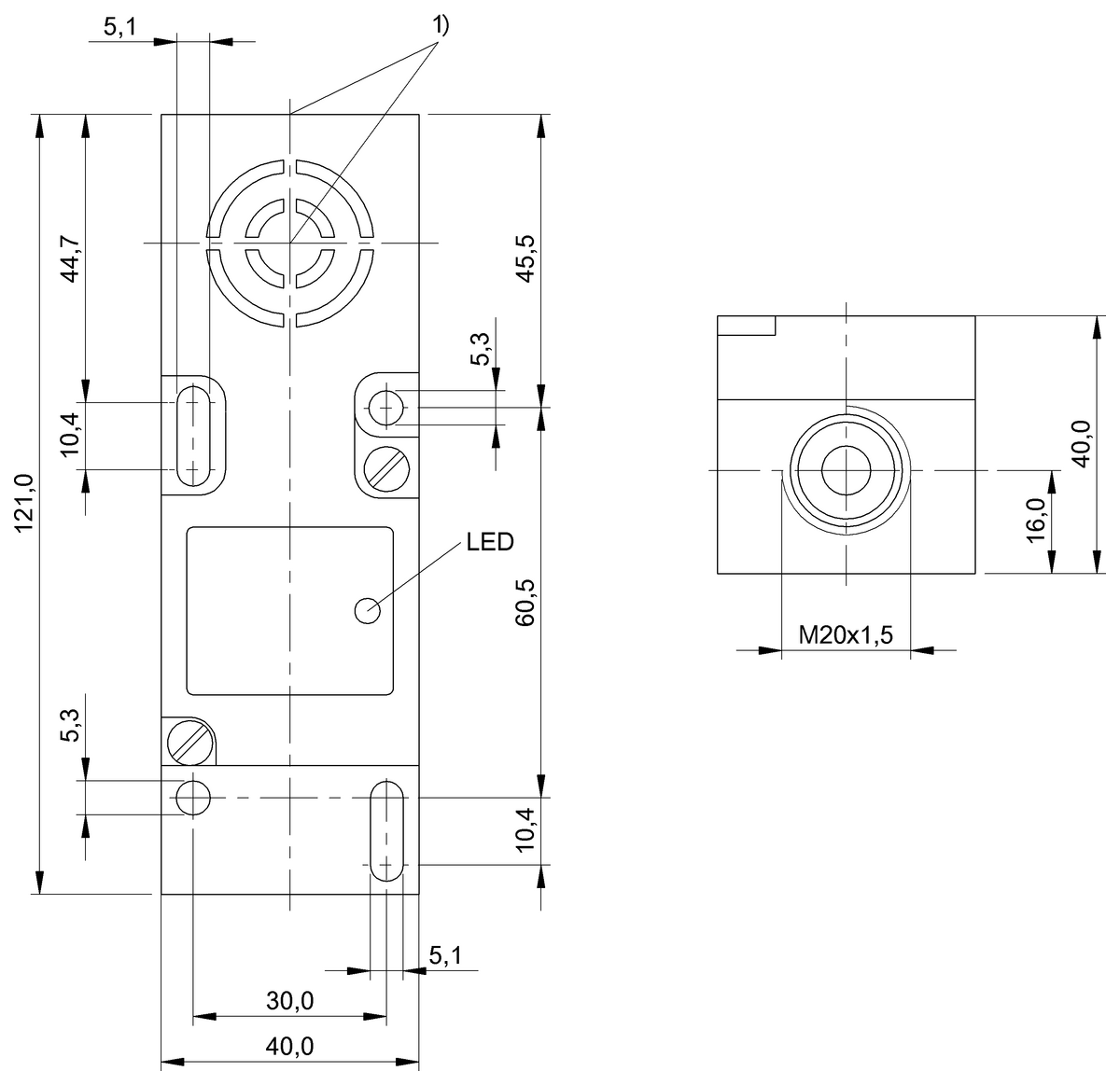

BES0309 (BES Q40KU-GPH20F-KM21) - Inductive proximity switches and proximity sensors - Dimension: 121 x 40 x 40 mm, Style Housing: 40x40, Installation: non-flush, Range: 20 mm, Switching output: polarized normally open/normally closed (NO/NC), Switching frequency: 300 Hz, Housing material: PPE, Material sensing surface: PPE, Connection: Screw terminals, Operating voltage Ub: 10...55 VDC, Ambient temperature: -25...80 °C, IP rating: IP65, Approval/Conformity: CE, EAC, WEEE
Style Housing
40x40
Installation
non-flush
Range
20 mm
Switching output
polarized normally open/normally closed (NO/NC)
Switching frequency
300 Hz
Housing material
PPE
Material sensing surface
PPE
Connection
Screw terminals
Operating voltage Ub
10...55 VDC
Ambient temperature
-25...80 °C
IP rating
IP65
Approval/Conformity
CEEACWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Tariff Code
85365019
