Balluff
BES M30MI-PSY10B-S04G-D01
Recommended replacements:
Price excluding VAT
Request a quote

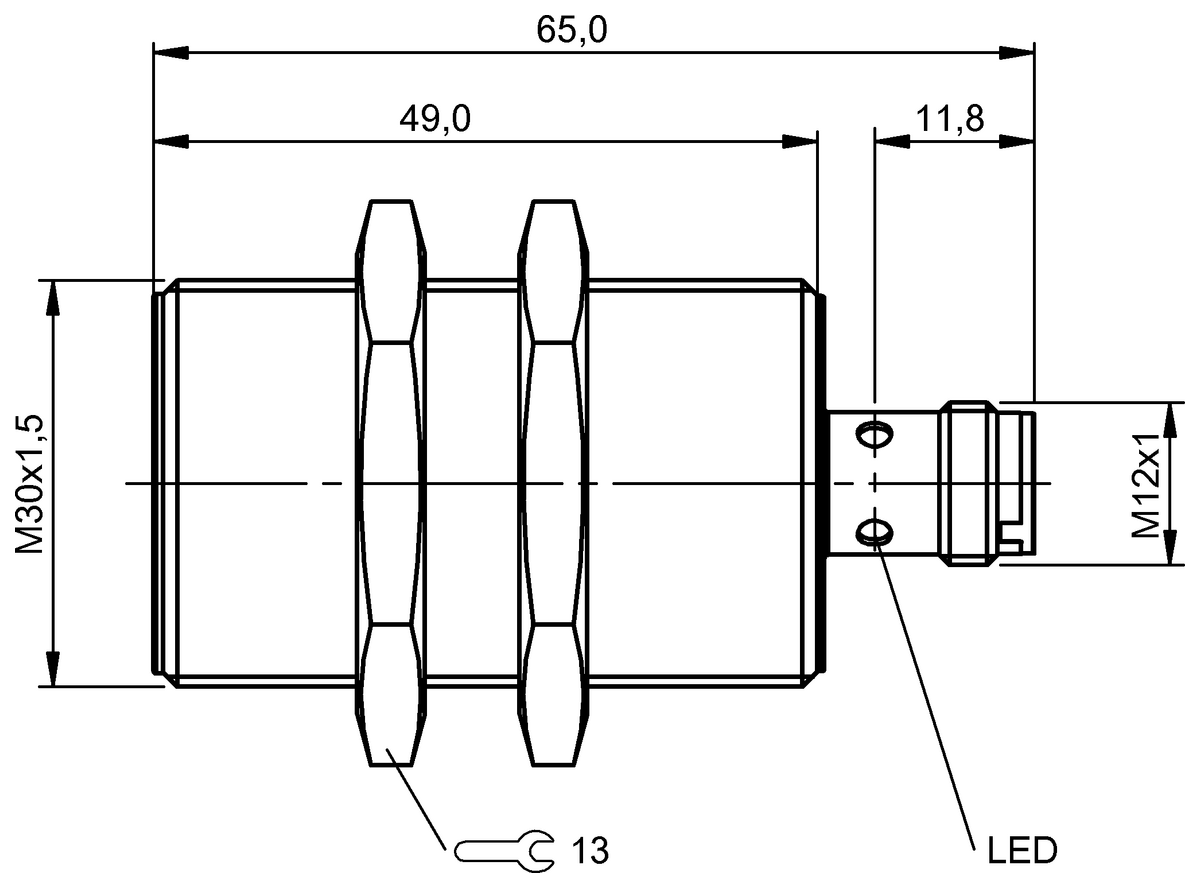

BES03EY (BES M30MI-PSY10B-S04G-D01) - Inductive proximity switches and proximity sensors - Dimension: Ø 30 x 65 mm, Style Housing: M30x1.5, Installation: for flush mounting, Range: 10 mm, Switching output: PNP normally open (NO), Switching frequency: 300 Hz, Housing material: Brass, Nickel-free coated, Material sensing surface: PA 12, Connection: Connector, M12x1-Male, 4-pin, Operating voltage Ub: 18...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, EAC
Style Housing
M30x1.5
Installation
for flush mounting
Range
10 mm
Switching output
PNP normally open (NO)
Switching frequency
300 Hz
Housing material
Brass, Nickel-free coated
Material sensing surface
PA 12
Connection
Connector, M12x1-Male, 4-pin
Operating voltage Ub
18...30 VDC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEcULusEAC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Manual
BES MIT DSC | (German)
Tariff Code
85365019
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
