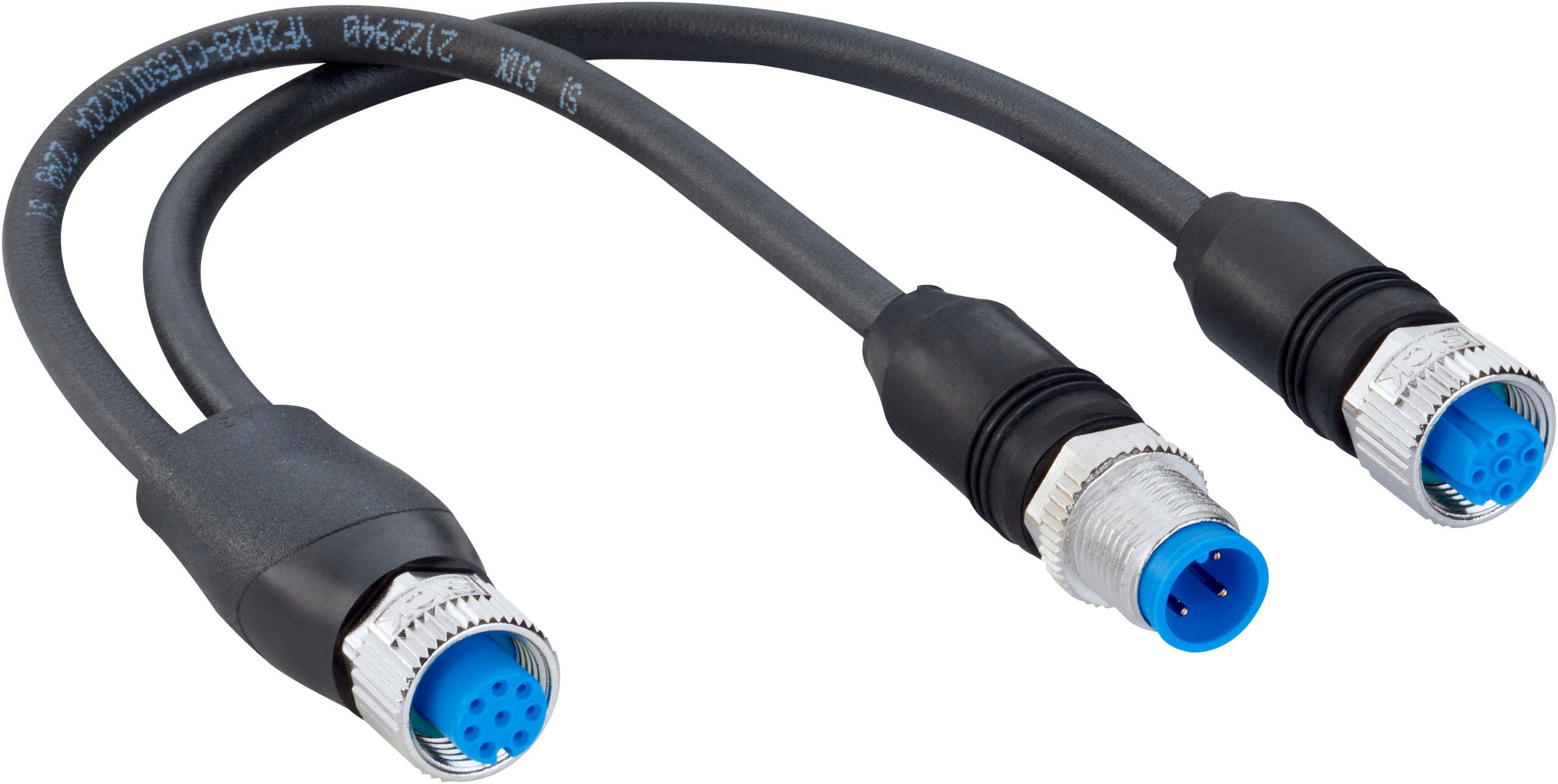

Connectors and cables | Y- and T-splitters | YF2A28-C15S01XY2C4 | Description: Shielded | Connection type head A: Female connector, M12, 8-pin, A-coded | Connection type head B: Female connector, M12, 4-pin, D-coded | Connection type head C: Male connector, M12, 4-pin, A-coded | Cable: 0.15 m, 4-wire, PUR, halogen-free
Connection type head A
Female connector, M12, 8-pin, A-coded
Connection type head B
Female connector, M12, 4-pin, D-coded
Connection type head C
Male connector, M12, 4-pin, A-coded
Locking plug connector
Screw connection
Connecting cable
0.15 m, 4-wire, PUR, halogen-free
Cable material
PUR, halogen-free
Conductor cross section
0.34 mm²
Connector material head A
TPU
Connector material head C
TPU
Locking nut material
Zinc die-cast, nickel-plated
Width across flats
13
Tightening torque
0.6 Nm
Shielding, head
Shielded
Shielding
Shielded
Reference voltage
≤ 30 V DC
Rated impulse voltage
0.8 kV
Contamination rating
3
Overvoltage category
III
Flexible use
–25 °C ... +80 °C
Stationary position
–40 °C ... +80 °C
Head
–25 °C ... +85 °C
EU declaration of conformity
✔
China RoHS
✔
