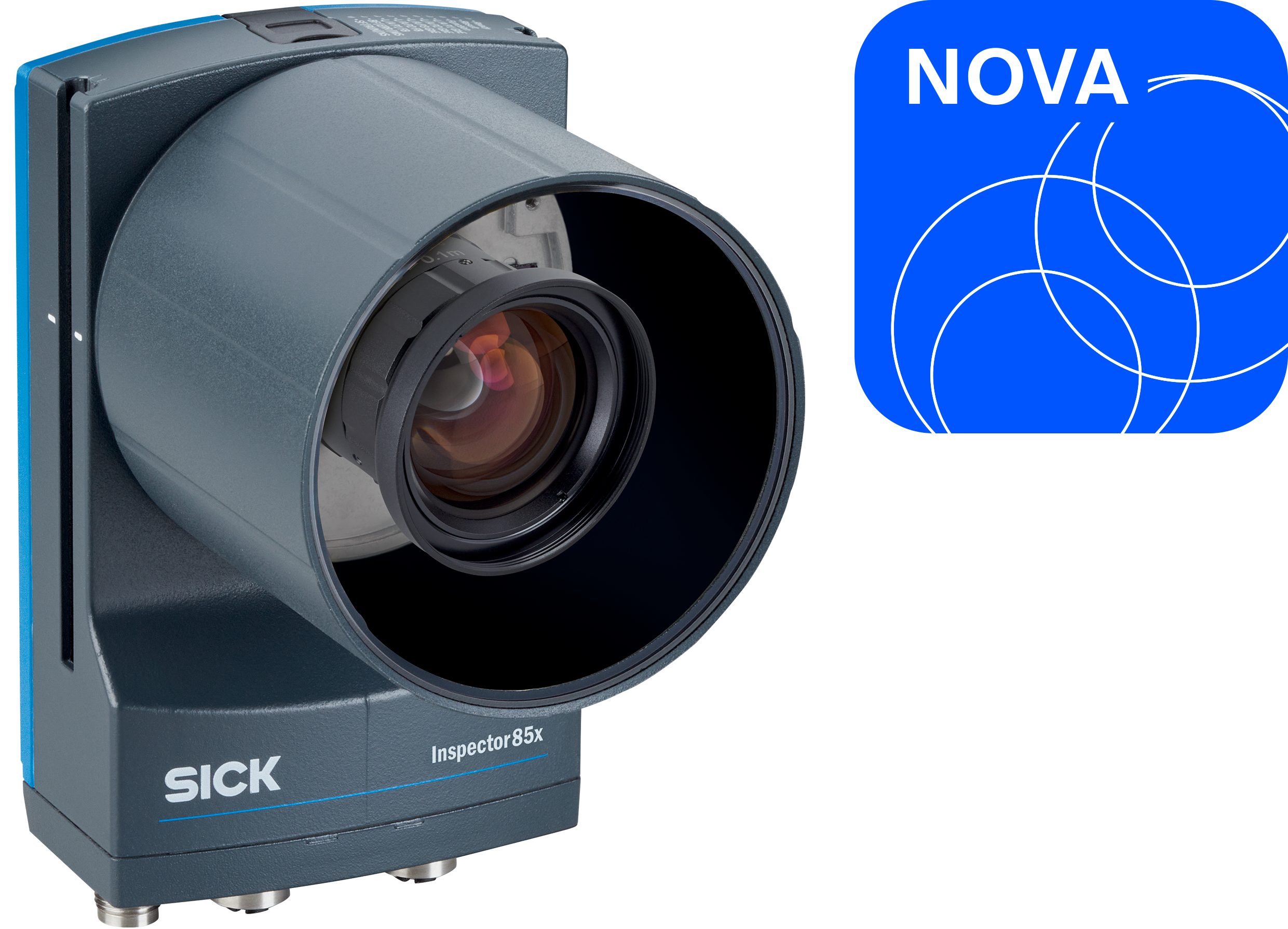

Machine vision | Inspector85x | V2D8505P-1MCXXXAF0SXXXX | License included: Quality Inspection License | Illumination: To be ordered separately as accessories | Lens: To be ordered separately as accessories, C-mount | Working distance: 500 mm ... 2,500 mm | Sensor resolution: 2,464 px x 2,048 px (5 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus
Technology
2D snapshot
Programmable
✔
Configurable
✔
Application software
Nova Inspector
Toolkit
SICK algorithm APIHALCON
Image sensor
CMOS monochrome
Shutter technology
Global-Shutter
Optical focus
Adjustable focus (manual)
Working range
500 mm ... 2,500 mm, depends on lens used1)
Illumination
To be ordered separately as accessories
Feedback spot
LED, Visible, green, 525 nm, ± 15 nm
Alignment aid
Laser, Red, 630 nm ... 680 nm
Laser class
1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014)
Lens
C-mount
Optical format
1/1.8"
Note
To be ordered separately as accessories
Task
Detecting - Standard objectsMeasuring - Dimension, contour and volumeMeasuring - NumberIdentifying - 2D codeIdentifying - OCRIdentifying - PatternIdentifying - ClassifyingIdentifying - SortingDetermining position - 2D position determination
Supply voltage
24 V DC, ± 20 %1)
Power consumption
Typ. 24 W, ± 20 %2)
Enclosure rating
IP65 (IEC 60529:2013 +C1:2013 +C2:2015 +AMD2 C1:2019, EN 60529:1991 +A1:2010 +A2:2013 +AC:2019-02)
Housing material
Aluminum die cast
Poids
640 g, without lens and connection cables
Dimensions (L x W x H)
143.3 mm x 90 mm x 46 mm3)
MTBF
100,000 h4)
Sensor resolution
2,464 px x 2,048 px (5 MP)
Pixel size
2.74 µm x 2.74 µm
Sensor size
6.75 mm x 5.61 mm
Scan/frame rate
40 Hz1)
Ethernet
✔ , TCP/IP, UDP
EtherNet/IP™
✔
PROFINET
✔
Function
PROFINET Dual Port
Serial
✔ , RS-232, RS-422
Data transmission rate
300 Baud ... 115.2 Baud
Operator interfaces
Web server
Configuration software
Web GUI (SensorApp configuration), SICK AppManager (IP determination and configuration, SensorApp installation), SICK AppStudio (programming)
Data storage and retrieval
Image and data logging via microSD memory card and external FTP
Inputs/outputs
2 x opto-decoupled inputs, physical, switching4 x configurable input/output, physical, switching (3 on the Power-I/O connection, 1 on the external illumination connection)
Output current
≤ 50 mA
Maximum encoder frequency
Max. 50 kHz
External illumination
Internal voltage supply and trigger via external illumination connection (max. 1 A) or external voltage supply and trigger via digital output
Optical indicators
12 LEDs (10 x status displays, 2 x feedback spot)
Interference resistance
IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019
Interference emission
IEC 61000-6-4:2018 / EN IEC 61000-6-4:2019
Vibration resistance
EN 60068-2-6:2007, EN 60068-2-64:2019
Shock resistance
EN 60068-2-27:2008
Ambient operating temperature
0 °C ... +50 °C1)
Storage temperature
–20 °C ... +70 °C
Relative humidity
≤ 90 %, Non-condensing
Altitude (above sea level)
< 5,000 m
License included
Quality Inspection License
Product type
Software
License type
Device license
License description
The Quality Inspection license enables productive use of a large subset of the tools of a SICK Nova SensorApp. The Quality Inspection toolkit is used to ensure that products comply with exact requirements after production, for instance when it comes to dimensions and angular degrees.The software is provided as a device license. A license is bound to a specific hardware ID.
Function range
Full version
License period
The license is issued without a time limit.
Expansion options
The SICK Nova Tool plug-in enables customer-specific or new tools to be added. Development and customization of the tools is supported by SICK AppSpace and SICK AppStudio.Optional upgrade with theIntelligent Inspection Upgrade License, which enables productive use of the complete toolset.
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Profinet certificate
✔
Ethernet/IP certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27310205
ECLASS 5.1.4
27310205
ECLASS 6.0
27310205
ECLASS 6.2
27310205
ECLASS 7.0
27310205
ECLASS 8.0
27310205
ECLASS 8.1
27310205
ECLASS 9.0
27310205
ECLASS 10.0
27310205
ECLASS 11.0
27310205
ECLASS 12.0
27310205
ETIM 5.0
EC001820
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
UNSPSC 16.0901
43211731
