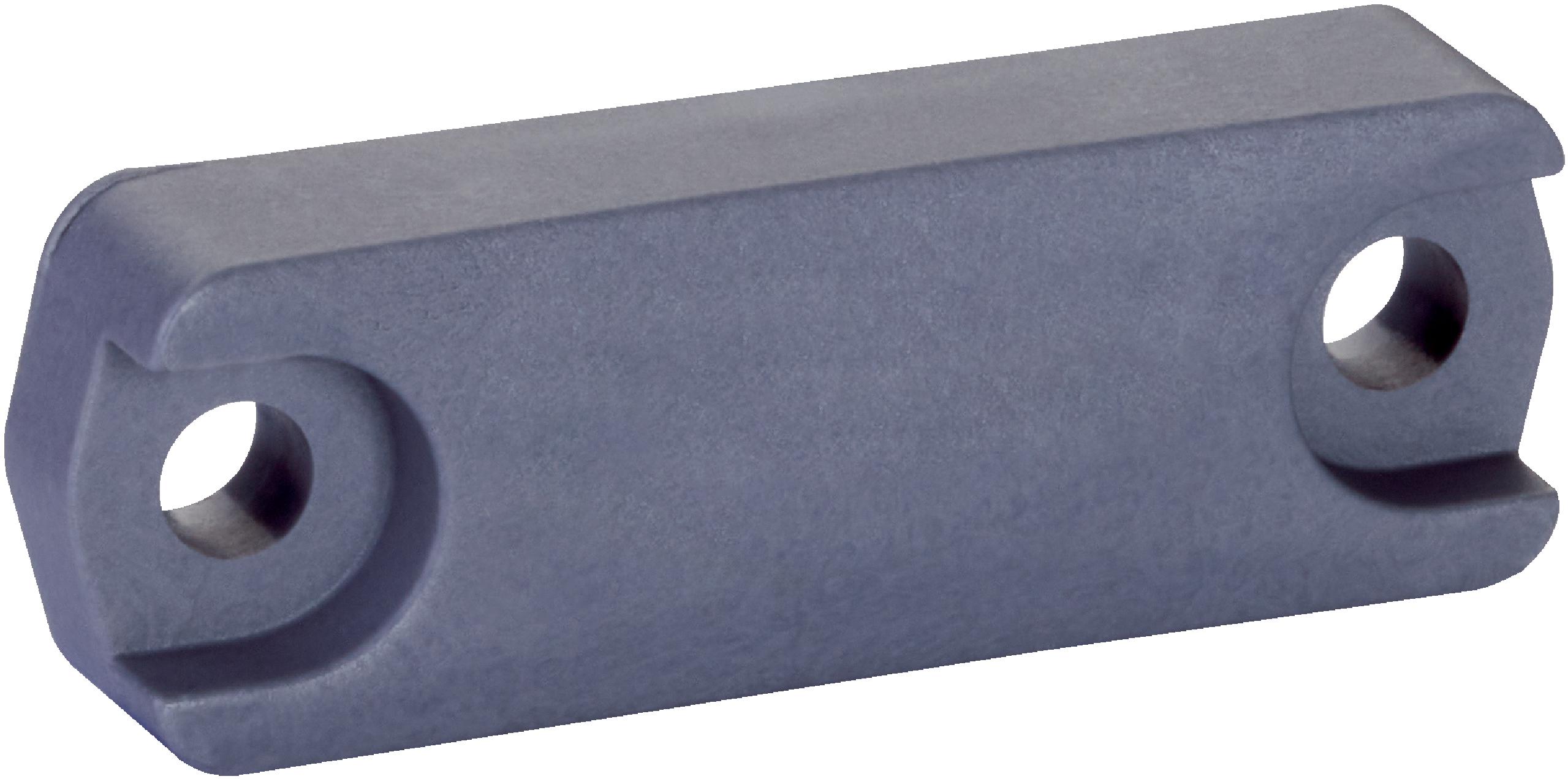

RFID transponders | UHF transponders | UHF Transponder, Rectangular, global | Carrier frequency: 865 MHz ... 928 MHz | Memory capacity (EPC / user memory): 496/128 Bit (EPC / User Memory) | Dimensions (L x W x H): 18 mm x 122 mm x 2 mm
Product segment
RFID transponders, RFID
Product
UHF transponders
Scope
Marking of small load carriers (SLC) and universal storage and transport containers, Marking of pallets, industrial cleaning processes
Frequency band
UHF (860 MHz ... 960 MHz)
Carrier frequency
865 MHz ... 928 MHz
Design
Rectangular
Housing material
Plastic
Ambient operating temperature
–35 °C ... +85 °C1)
Storage temperature
–35 °C ... +85 °C
Housing color
White
IC type
Impinj M780
Storage capacity
496/128 Bit (EPC / User Memory)
IC data retention time
< 20 years
Mounting method
Screws, Rivets, self-adhesive
Dimensions (W x H x L)
122 mm x 2 mm x 18 mm
Weight
1 g
RFU61x
100 cm2)
RFU62x
300 cm2)
RFU63x/RFU65x
1,200 cm2)
ECLASS 5.1.4
0
ECLASS 6.0
0
ECLASS 7.0
0
ECLASS 8.0
0
ECLASS 9.0
27280402
ECLASS 10.0
27280402
ECLASS 11.0
27280402
ECLASS 12.0
27280402
ECLASS 13.0
27280402
ECLASS 14.0
27280402
ECLASS 15.0
27280402
ETIM 6.0
EC002996
ETIM 7.0
EC002996
ETIM 8.0
EC002996
ETIM 9.0
EC002996
ETIM 10.0
EC002996
UNSPSC 091201.0
43211710
UNSPSC 100501.0
43211710
UNSPSC 111201.0
43211710
UNSPSC 120901.0
43211710
UNSPSC 131201.0
43211710
UNSPSC 140801.0
43211710
UNSPSC 151101.0
43211710
UNSPSC 160901.0
43211710
UNSPSC 171001.0
43211710
UNSPSC 180801.0
43211710
UNSPSC 190501.0
43211710
UNSPSC 200601.0
43211710
UNSPSC 210901.0
43211710
UNSPSC 220601.0
43211710
UNSPSC 230701.0
43211710
UNSPSC 240301.0
43211710
UNSPSC 250901.0
43211710
UNSPSC 260801.0
43211710
Download Datasheet
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
