Murrelektronik

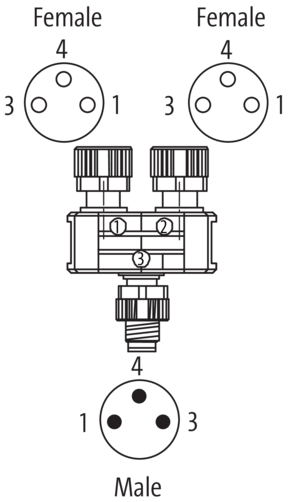

T-Coupler M8 male / 2x M8 female A-cod.
Price excluding VAT
Request a quote
T-coupler Male straight – females straight M8 – M8, 3-pole Series connection Plastic housings with good resistance against chemicals and oils. The...
Weight
0,026 kg
Country of origin
DE
Model designation
MSH02RL0-FR-FR
Operating voltage AC max.
50 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
Operating voltage AC max. (UL-listed)
30 V
Operating voltage DC max. (UL-listed)
30 V
Tightening torque
0,4 Nm
Mounting set
M8 x 1
Degree of protection (EN IEC 60529)
IP67
Additional condition protection degree
inserted, screwed
Rated surge voltage
1,5 kV
Mounting method
inserted, screwed, Shaking protection
Operating temperature min.
-30 °C
