Murrelektronik

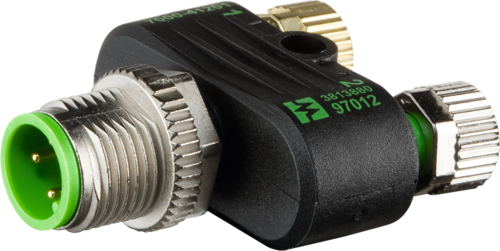

T-Coupler M12 male / 2x M12 female A-cod. F&B PRO
Price excluding VAT
Request a quote
T-coupler F&B Pro Male straight – females straight M12, 5-pole – M12, 4-pole Plastic housings with good resistance against chemicals and oils. The...
Weight
0,034 kg
Country of origin
PL
Model designation
T-Stück M12 St. 5pol./ 2x Bu. 4pol. F&B
Family construction form
M12
No. of poles
5
Coding
A
Gender
male
Mounting method
inserted, screwed, Shaking protection
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Width across flats
SW 14
Degree of protection (EN IEC 60529)
IP67, IP69K, IP68, IP65
Operating voltage AC max.
60 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
