Murrelektronik
T-Coupler M12 female / 2x M12 male A-cod.
Hind käibemaksuta
Küsi pakkumist

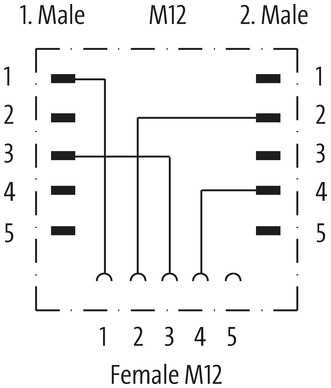

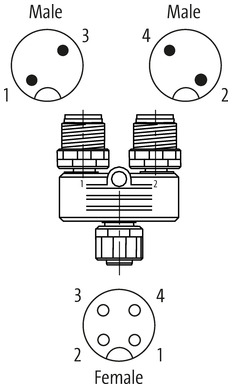

AS-Interface T-coupler Female straight – male straight M12 – M12, 4-pole / 2-pole A-coded MASI68 additional actuator power supply Plastic housings with...
Kaal
0,027 kg
Päritoluriik
DE
Mudeli tähistus
MSB02TL0-AC-AF-S60
Operating voltage AC max.
60 V
Operating voltage DC max.
60 V
Operating temperature min.
-25 °C
Operating temperature max.
85 °C
Note on strain relief
Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius
Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
