Murrelektronik

T-Coupler 7/8'' female / 7/8'' male + 7/8'' female

SKU: 7000-50061-0000000 Saadaval tellimisel
Hind käibemaksuta

Küsi pakkumist

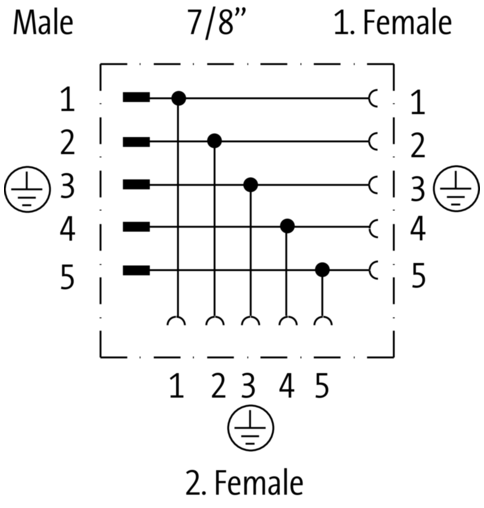

    T-coupler Female straight – female/male straight 7/8" – 7/8", 5-pole Parallel circuit Plastic housings with good resistance against chemicals and oils....

    Kaal
    0,094 kg
    Päritoluriik
    CN
    Mudeli tähistus
    MSCB02UL0-CBU-CAU
    Operating voltage AC max.
    50 V
    Operating voltage DC max.
    50 V
    Current operating per contact max.
    8 A
    Degree of protection (EN IEC 60529)
    IP67
    Additional condition protection degree
    inserted, screwed
    Locking material
    Steel
    Coating locking
    galvanized
    Mounting method
    inserted, screwed
    Operating temperature min.
    -20 °C
    Operating temperature max.
    80 °C
    Note on bending radius
    Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
    Note on strain relief
    Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
