Safety systems | Safe Robotics Area Protection | SYS/BOT-ABIO4PCWI02MS3 | Variant: sBot Speed2 I/O - ABB | Product type: System (hardware and software) | Robot controller: ABB: SWIFTI CRB 1100, SWIFTI CRB 1300, GoFa CRB 15000 | Stopping process of the robot: With speed reduction | Robot restart: Automatic | Interface: Discrete I/Os
Variant
sBot Speed2 I/O - ABB
Description
sBot Speed I/O – ABB is a safety system for ABB robots (GoFaTM and SWIFTITM) that makes it easy to protect your freely accessible robot application in an I/O infrastructure. The system ensures a safe stop with automatic restart of the robot. Thanks to the two microScan3 Pro I/O safety laser scanners, approaching persons are detected over a 360-degree range. The microScan3 Configuration Tool (software) can be used to quickly and easily configure the safety laser scanners.
Product type
System (hardware and software)
Robot controller
ABB: SWIFTI CRB 1100, SWIFTI CRB 1300, GoFa CRB 15000
Compatible robot software
RobotWare (Omnicore) 7.10
Stopping process of the robot
With speed reduction
Robot restart
Automatic
Communication interface
Discrete I/Os
Configuration interface
Ethernet
Safe state in the event of a fault
The safety-related semiconductor outputs are in the OFF state.
Safety laser scanners
microScan3 Pro I/O
Protective field range
4 m
Safety task
Hazardous area protection
Ambient operating temperature
–10 °C ... +50 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
0% ... 95%, non-condensing
Supply voltage VS
24 V DC (16.8 V DC ... 30 V DC)
Performance level
PL d (ISO 13849-1)
Items supplied

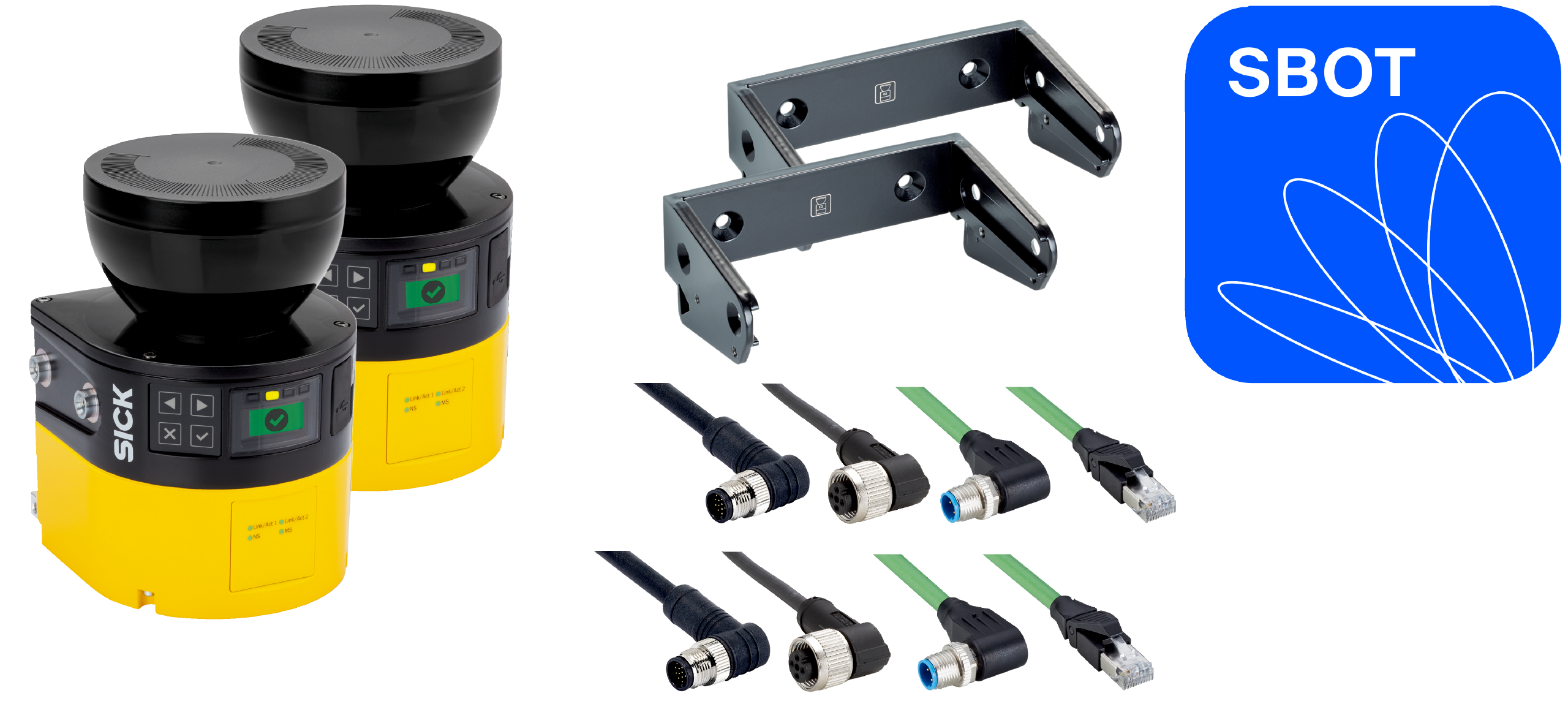

2 x microScan3 Pro I/O safety laser scanner (4 m)2 x power cable, angled, 5 m2 x signal cable with angled plug, 5 m2 x mounting kit 1a2 x RJ45 Ethernet cable, straight, 5 mmicroScan3 Configuration Tool (software)Operating instructions
Collaborative Speed Control add-in
Option Collaborative speed control [3143-1]
Safety IO-Board
Safe base Dig. 6In/ 2Out [3037-2]
Ethernet switch
Port Ethernet switch [3014-1 5]
China RoHS
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.1.4
27279090
ECLASS 6.0
27279090
ECLASS 7.0
27279090
ECLASS 8.0
27279090
ECLASS 9.0
27279090
ECLASS 10.0
27279090
ECLASS 11.0
27279090
ECLASS 12.0
27279090
ECLASS 13.0
27279090
ECLASS 14.0
27279090
ECLASS 15.0
27279090
ETIM 6.0
EC002467
ETIM 7.0
EC002467
ETIM 8.0
EC002467
ETIM 9.0
EC002467
ETIM 10.0
EC002467
UNSPSC 091201.0
32151705
UNSPSC 100501.0
32151705
UNSPSC 111201.0
32151705
UNSPSC 120901.0
32151705
UNSPSC 131201.0
32151705
UNSPSC 140801.0
32151705
UNSPSC 151101.0
32151705
UNSPSC 160901.0
32151705
UNSPSC 171001.0
32151705
UNSPSC 180801.0
32151705
UNSPSC 190501.0
32151705
UNSPSC 200601.0
32151705
UNSPSC 210901.0
32151705
UNSPSC 220601.0
32151705
UNSPSC 230701.0
32151705
UNSPSC 240301.0
32151705
UNSPSC 250901.0
32151705
UNSPSC 260801.0
32151705
Download Datasheet
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
