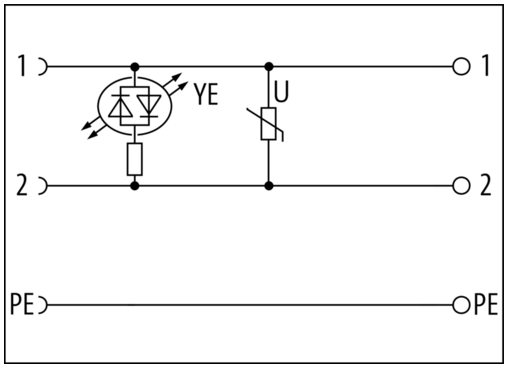

Form A (18 mm) 230 V AC/DC ±10% LED and VDR metric Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media...
Вес
0,040 kg
Страна происхождения
CN
Обозначение модели
MSVS-EB4X-M16
Family construction form
Valve connector form A
Mounting method
pluggable, screwed
Degree of protection (EN IEC 60529)
IP65
Operating voltage AC
230 V
Operating voltage AC min.
207 V
Operating voltage AC max.
253 V
Operating voltage DC
230 V
Operating voltage DC min.
207 V
Operating voltage DC max.
253 V
Current operating per contact max.
1 A
Tightening torque
0,4 Nm
Mounting set
M3x31
