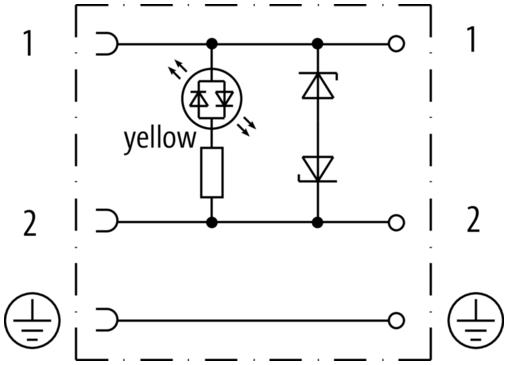

Form A (18 mm) 24 V AC/DC ±25% LED and Z-diode metric Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media...
Вес
0,037 kg
Страна происхождения
CN
Обозначение модели
MSVS-EB1Z-M16
Family construction form
Valve connector form A
Mounting method
pluggable, screwed
Degree of protection (EN IEC 60529)
IP65
Operating voltage AC
24 V
Operating voltage DC
24 V
Current operating per contact max.
4 A
Status indication LED
yellow
Tightening torque
0,4 Nm
Tightening torque clamping screw
0,2 Nm
Mounting set
M3x31
Connection information
Wire end ferrules
No. of poles
2 + PE
