Form C (8 mm) 24 V AC/DC ±15% LED and VDR metric Field wireable (screw terminals) Plastic housings with good resistance against chemicals and oils. The...
Вес
0,020 kg
Страна происхождения
HU
Обозначение модели
MSVSE-DB1X-M12 SVS Eco LED
Family construction form

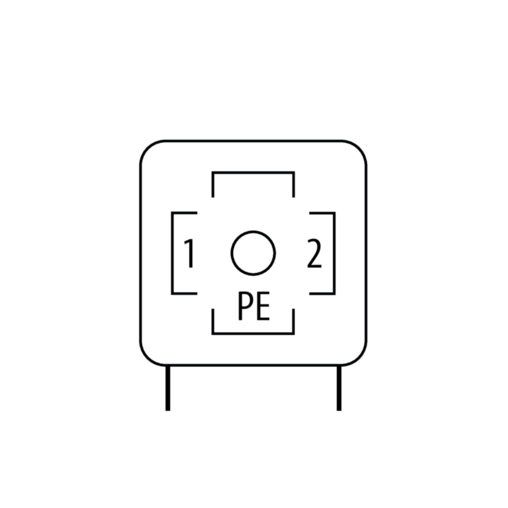

Valve connector form C
Mounting method
pluggable, screwed
Degree of protection (EN IEC 60529)
IP65
Operating voltage AC
24 V
Operating voltage AC min.
20,4 V
Operating voltage AC max.
26,4 V
Operating voltage DC
24 V
Operating voltage DC min.
20,4 V
Operating voltage DC max.
26,4 V
Current operating per contact max.
1,5 A
Status indication LED
yellow
Connection cross section min.
0,34 mm²
