Displays | SID | SID160 Pro | Display size: 15.6 ″ | Operating system: Windows® 10 IoT Enterprise LTSC | Processor: Intel® Pentium® Gold-Processor G5400T
Supported products
Devices with integrated web serverLector seriesInspectorP seriesSICK Analytics SolutionsSICK AppEngineField Analytics
Product category
Programmable devices
Processor
Intel® Pentium® Gold-Processor G5400T
Random Access Memory
16 GB RAM
Further functions
Watch Dog TimerIntel® integrated Gfx graphic engine
Size
15.6 ″
Resolution
1,366 px x 768 px
Brightness
Typ. 400 cd/m²
Viewing angle
85° (right)
Touch display
Projective capacitative multi-touch LCD
Front screen
ITO glass, chemical enhanced, 2,4± 0,2 mm
Frame
Aluminum
Supply voltage
24 V DC
Power consumption
60 W
Enclosure rating
Front side: IP65
Kaal
8,500 g
Dimensions (W x H x D)
396.8 mm x 247.1 mm x 53 mm
Mounting system type
VESA mounting, Panel mounting, Wall mounting (requires separate accessories)
MTBF
104,277 h

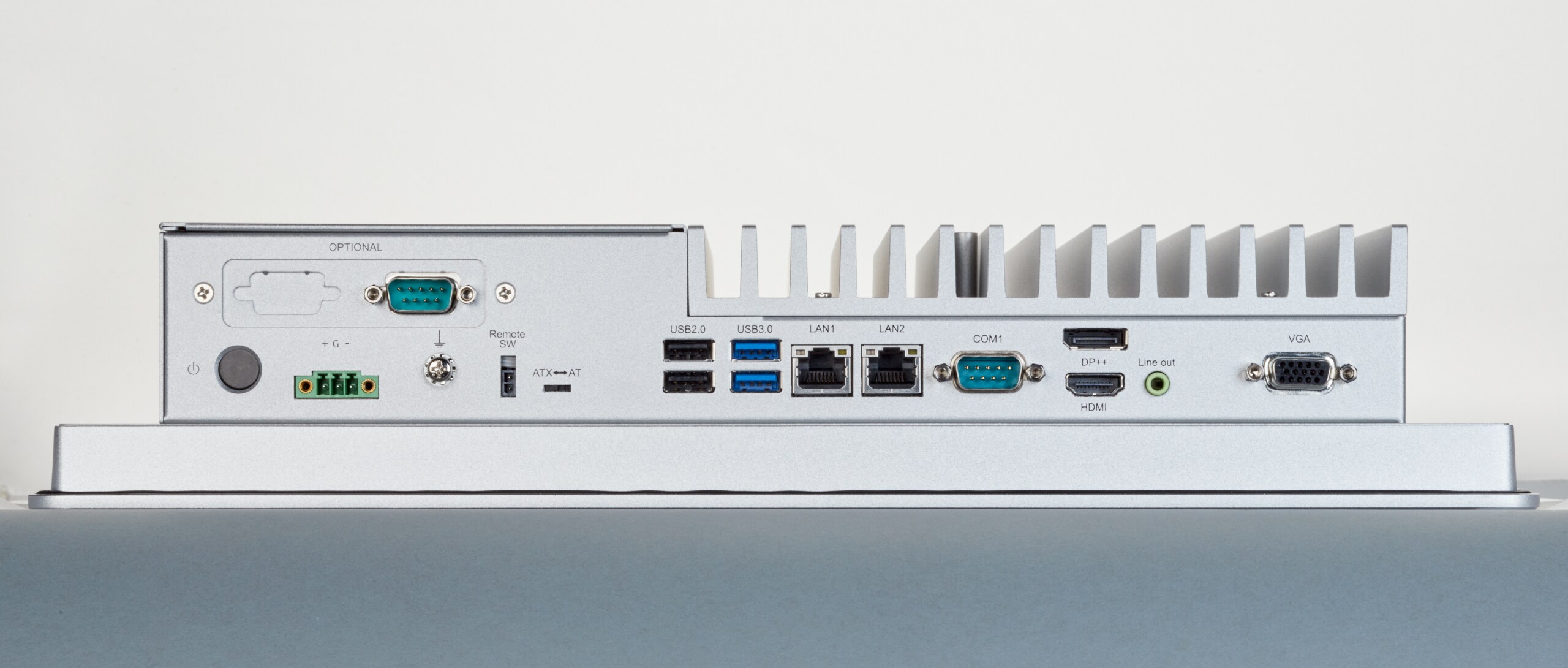

Ethernet
✔ (2) , RS-232, RS-422, RS-485
USB
✔ (4)
Remark
2 x USB 3.0, 2 x USB 2.0
Data transmission rate
≥ 480 Mbit/s
Serial
✔
Memory card
1 x M.2 Key E slot1 x full-size mini card slot
Electromagnetic compatibility (EMC)
EN 61000-6-4:2007+A1:2011EN 61000-6-2:2005+AC:2005
Ambient operating temperature
0 °C ... +50 °C
Ambient temperature, storage
–15 °C ... +65 °C
Permissible relative humidity
20 ... 90 % RH
Items supplied
SID160 Pro256 GB SSD hard drivePhoenix-ConnectorPanel mounting kit
Note
Not free of paint wetting impairment substances.
Operating system
Windows® 10 IoT Enterprise LTSC
ECLASS 5.1.4
27242401
ECLASS 6.0
19200101
ECLASS 7.0
19200101
ECLASS 8.0
19200101
ECLASS 9.0
19200101
ECLASS 10.0
19200101
ECLASS 11.0
19200101
ECLASS 12.0
19200101
ECLASS 13.0
19200101
ECLASS 14.0
19200101
ECLASS 15.0
19200101
ETIM 6.0
EC001413
ETIM 7.0
EC001413
ETIM 8.0
EC001413
ETIM 9.0
EC001413
ETIM 10.0
EC001413
UNSPSC 091201.0
81141800
UNSPSC 100501.0
81141800
UNSPSC 111201.0
81141800
UNSPSC 120901.0
81141800
UNSPSC 131201.0
81141800
UNSPSC 140801.0
81141800
UNSPSC 151101.0
81141800
UNSPSC 160901.0
81141800
UNSPSC 171001.0
81141800
UNSPSC 180801.0
81141800
UNSPSC 190501.0
81141800
UNSPSC 200601.0
81141800
UNSPSC 210901.0
81141800
UNSPSC 220601.0
81141800
UNSPSC 230701.0
81141800
UNSPSC 240301.0
81141800
UNSPSC 250901.0
81141800
UNSPSC 260801.0
81141800
