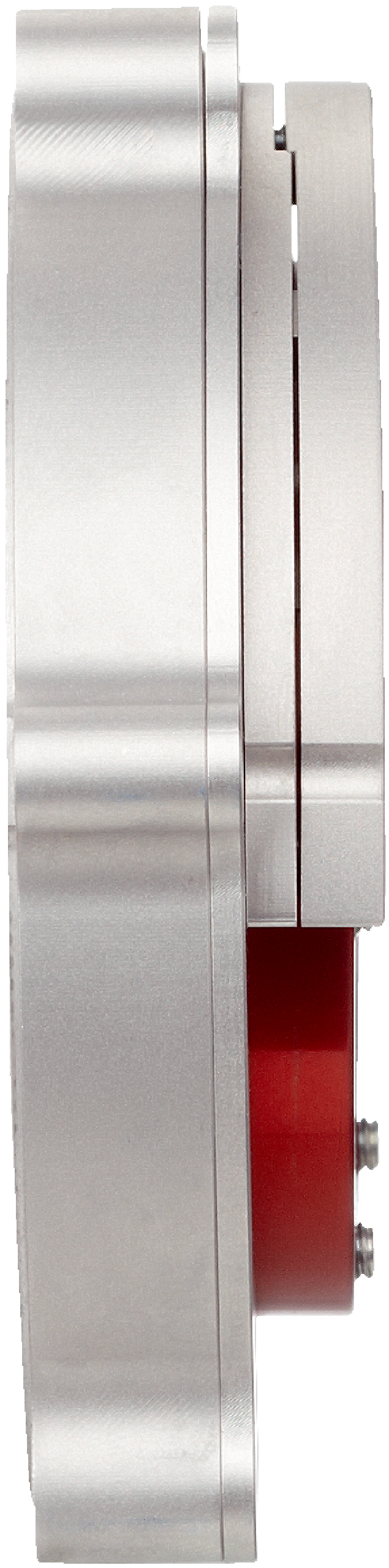

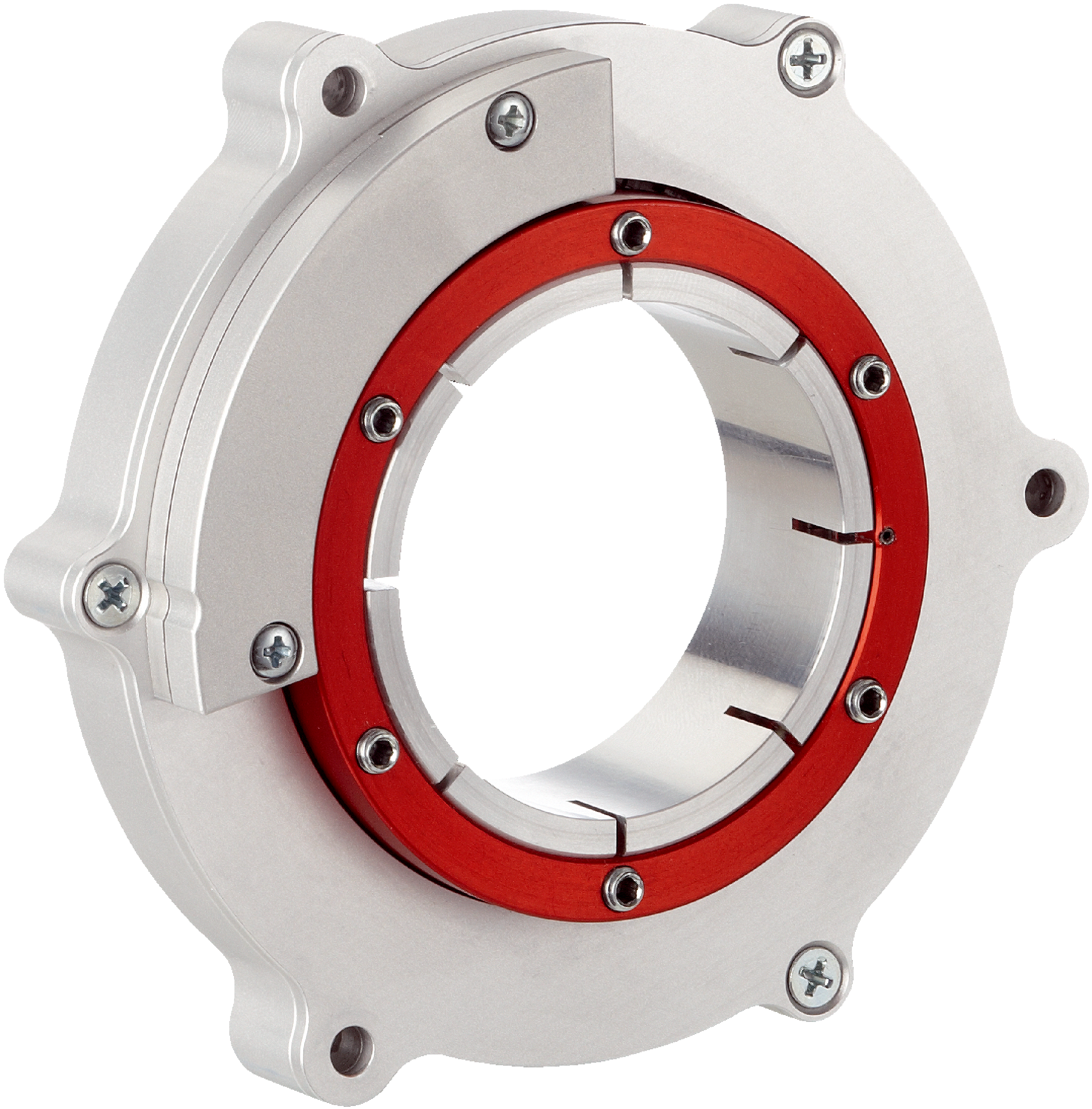

Motor feedback systems rotary HIPERFACE® | SEK90 | SEK90-HN050AK02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: For integration | Sine/cosine periods per revolution: 64 | Mechanical design: Through hollow shaft | Connection type: Male connector, M12, 8-pin | Operating temperature range: –30 °C ... +115 °C | Specialty: Stranded cable with strain relief not included in scope of delivery, please order separately (partnumer 2051662), resolver support, plug-in shaft
Specialty
Stranded cable with strain relief not included in scope of delivery, please order separately (partnumer 2051662), resolver support, plug-in shaft
Sine/cosine periods per revolution
64
Number of the absolute ascertainable revolutions
1
Total number of steps
2,048 via RS485
Measuring step
5 Winkelsekunden For interpolation of the sine/cosine signals with, e. g., 12 bits
Integral non-linearity
± 72 Winkelsekunden, Error limits for evaluating sine/cosine period, typical values at nominal position ± 0.1 mm und +20 °C
Differential non-linearity
± 45 Winkelsekunden, Non-linearity within a sine/cosine period, typical values at nominal position ± 0.1 mm und +20 °C
Latency period
100 µs
Available memory area
1,792 Byte
Type of code for the absolute value
Binary
Code sequence
Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing), For clockwise shaft rotation, looking in direction “A” (see dimensional drawing)
Communication interface
HIPERFACE®
Connection type
Male connector, M12, 8-pin
Supply voltage
7 V DC ... 12 V DC
Recommended supply voltage
8 V DC
Power consumption
150 mA1)
Shaft version
Through hollow shaft
Shaft diameter
50 mm
Dimensions
See dimensional drawing
Weight
≤ 0.13 kg
Moment of inertia of the rotor
340 gcm²
Operating speed
3,000 min⁻¹
Angular acceleration
≤ 50,000 rad/s²
Operating temperature range
–30 °C ... +115 °C
Storage temperature range
–50 °C ... +125 °C, without package
Relative humidity/condensation
90 %, Condensation not permitted
Resistance to shocks
100 g, 6 ms (according to EN 60068-2-27)
Frequency range of resistance to vibrations
30 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
EMC
According to EN 61000-6-2 and EN 61000-6-31)
Enclosure rating
IP40, with mating connector inserted and closed cover (IEC 60529)
ECLASS 5.0
27270590
ECLASS 5.1.4
27270590
ECLASS 6.0
27270590
ECLASS 6.2
27270590
ECLASS 7.0
27270590
ECLASS 8.0
27270590
ECLASS 8.1
27270590
ECLASS 9.0
27270590
ECLASS 10.0
27273805
ECLASS 11.0
27273901
ECLASS 12.0
27273901
ETIM 5.0
EC001486
ETIM 6.0
EC001486
ETIM 7.0
EC001486
ETIM 8.0
EC001486
UNSPSC 16.0901
41112113
