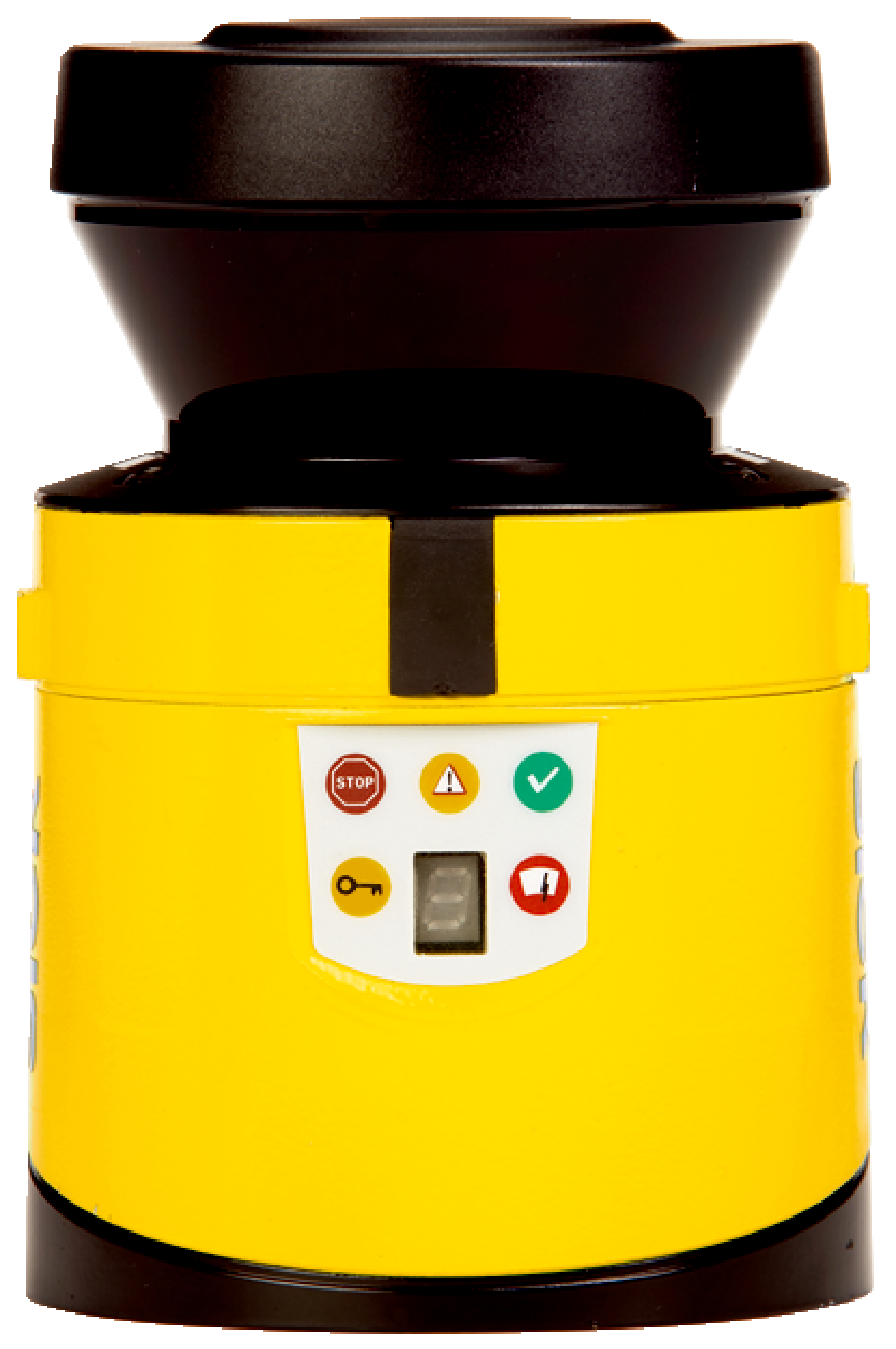

Safety laser scanners | S300 | S30B-2011GB | Product version: S300 Expert | Model: Sensor without system plug | Protective field range: 2 m | Scanning angle: 270° | Number of fields: 48
Product version
S300 Expert
Model
Sensor without system plug
Application
Indoor
Protective field range
2 m
Warning field range
8 m (at 15 % reflectivity)
Distance measuring range
30 m
Type of field set
Triple field sets
Number of field sets
16
Number of fields
48
Number of monitoring cases
321)
Scanning angle
270°
Resolution (can be configured)
30 mm, 40 mm, 50 mm, 70 mm
Angular resolution
0.5°
Response time
80 ms2)
Protective field supplement
100 mm
Number of multiple samplings
2 ... 16, configurable
Delay of automatic reset
2 s ... 60 s, configurable
Type
Type 3 (IEC 61496)
Safety integrity level
SIL 2 (IEC 61508)
Category
Category 3 (EN ISO 13849)
Performance level
PL d (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
8.0 x 10-8
TM(mission time)
20 years (EN ISO 13849)
Safe state in the event of a fault
At least one OSSD is in the OFF state.
Restart interlock
✔
Multiple sampling
✔
Monitoring case switching
✔
Static protective field switching
✔
Dynamic protective field switching
✔
Contour as a reference
✔
Integrated configuration memory
✔
Safe SICK device communication via EFI
✔
Connection type
System plug with or without connecting cable
Universal I/Os
51)
External device monitoring (EDM)
12)
Reset/restart
12)
Static control inputs
33)
Static control inputs with EFI
54)
Dynamic control inputs (incremental encoder)
25)
Standby
1
OSSD pairs
1
Configuration method
PC with CDS (Configuration and Diagnostic Software)
Configuration and diagnostics interface
RS-232
Data interface
RS-422
Transmission rate
≤ 500 kBaud
Length of cable
≤ 50 m
Conductor cross section
0.22 mm²
Protection class
II (EN 50178, EN 60950)
Supply voltage Vs
24 V DC (16.8 V DC ... 30 V DC)
Power consumption
0.33 A1)1.7 A2)
Output signal switching devices (OSSDs)
2 x 250 mA
Application diagnostic outputs
3 x 100 mA3)
Dimensions (W x H x D)
102 mm x 152 mm x 106 mm
Weight
1.2 kg
Housing material
Aluminum die cast
Housing color
RAL 1021 (yellow)
Optics cover material
Polycarbonate
Optics cover surface finish
Outside with scratch-resistant coating
Enclosure rating
IP65 (EN 60529)
Ambient operating temperature
–10 °C ... +50 °C
Storage temperature
–25 °C ... +50 °C
Vibration resistance
IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Shock resistance
IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Class
5M1 (IEC 60721-3-5)
Continuous shock
50 m/s², 11 ms
Type of light
Pulsed laser diode
Wave length
905 nm
Detectable remission factor
1.8 % ... > 1,000 %, reflectors
Laser class
1 (21 CFR 1040.10 and 1040.11, IEC 60825-1)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
EC-Type-Examination approval
✔
China GB certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.1.4
27272705
ECLASS 6.0
27272705
ECLASS 7.0
27272705
ECLASS 8.0
27272705
ECLASS 9.0
27272705
ECLASS 10.0
27272705
ECLASS 11.0
27272705
ECLASS 12.0
27272705
ECLASS 13.0
27272705
ECLASS 14.0
27272705
ECLASS 15.0
27272705
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
ETIM 9.0
EC002550
ETIM 10.0
EC002550
UNSPSC 091201.0
39121528
UNSPSC 100501.0
39121528
UNSPSC 111201.0
39121528
UNSPSC 120901.0
39121528
UNSPSC 131201.0
39121528
UNSPSC 140801.0
39121528
UNSPSC 151101.0
39121528
UNSPSC 160901.0
39121528
UNSPSC 171001.0
39121528
UNSPSC 180801.0
39121528
UNSPSC 190501.0
39121528
UNSPSC 200601.0
39121528
UNSPSC 210901.0
39121528
UNSPSC 220601.0
39121528
UNSPSC 230701.0
39121528
UNSPSC 240301.0
39121528
UNSPSC 250901.0
39121528
UNSPSC 260801.0
39121528
