Murrelektronik
Reset button with 2 illuminated push buttons
Prix hors TVA
Demander un devis

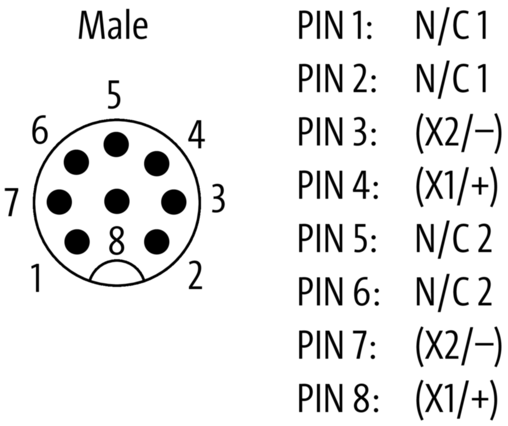

R-Button / 42 2NO L M12(8) with M12 connection 8-pole 2 buttons can be lit (each 1 NO contact) Delivery contents: Flat lens, transparent clear, red, yellow,...
Poids
0,115 kg
Pays d'origine
DE
Désignation du modèle
R-Button 42 2NO L M12(8)
Operating voltage AC/DC LED illumination max.
30 V
Operating current LED illumination
14 mA @ 24 V DC
Operating voltage DC min.
1 V
Operating voltage DC max.
36 V
Operating current
1,5 A
Operating voltage DC (UL Recognized)
30 V
Condition lifetime
load-dependent, temperature dependent
Degree of protection (EN IEC 60529)
IP65
Electrical lifetime
0 cycles
Mechanical endurance
0 cycles
Bounce time max.
10 ms
Material contact
AgNi
