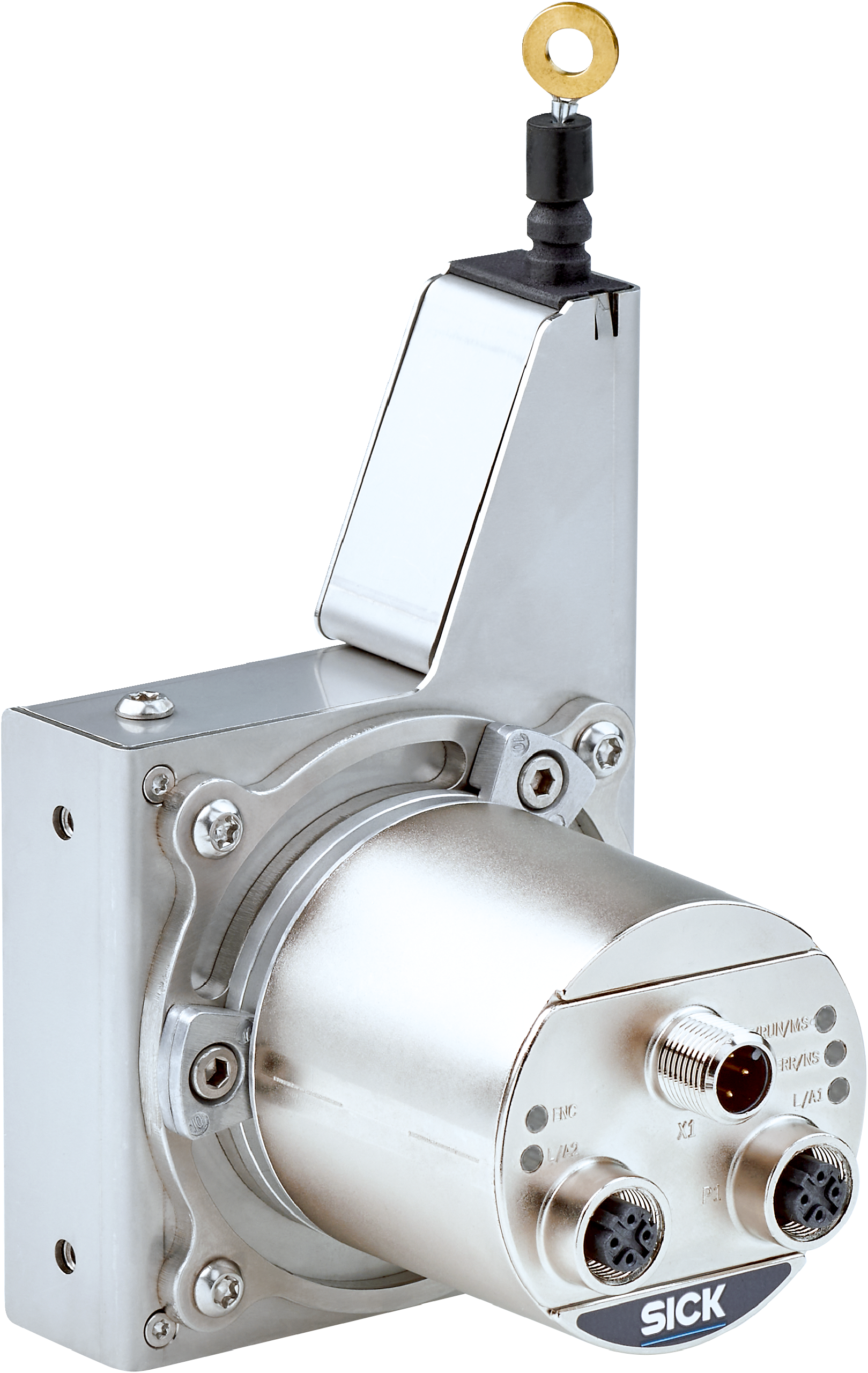

Wire draw encoders | VarioLine | PFV08-P1AM03B300 | Measuring range: 0 m ... 3 m | Communication interface: Incremental / TTL / HTL | Supply voltage: 4.5 V ... 32 V | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: DFS60, DFS60A-S1PA65536, 1036760 | Mounted mechanic: MRA-V080-103D3, 5347779 | Programmable/configurable: yes
MTTFD(mean time to dangerous failure)
300 years (EN ISO 13849-1)1)
Measurement range
0 m ... 3 m
Encoder
Incremental encoders
Resolution (wire draw + encoder)
0.004 mm1)2)
Repeatability
≤ 0.3 mm3)
Linearity
≤ ± 2 mm3)
Hysteresis
≤ 1.2 mm3)
Communication interface
Incremental / TTL / HTL
Programmable/configurable
✔
Connection type
Male connector, M23, 12-pin, radial
Supply voltage
4.5 V ... 32 V
Power consumption
≤ 0.7 W (without load)
Poids
0.9 kg
Measuring wire material
Stainless steel 1.4401
Measuring wire diameter
0.81 mm
Housing material, wire draw mechanism
Stainless steel 1.4301
Spring return force
8 N ... 10 N1)
Length of wire pulled out per revolution
230 mm
Life of wire draw mechanism
Typ. 1,000,000 cycles2)3)
Actual wire draw length
3.2 m
Operating speed
4 m/s
Mounted encoder
DFS60, DFS60A-S1PA65536, 1036760
Mounted mechanic
MRA-V080-103D3, 5347779
EMC
According to EN 61000-6-2 and EN 61000-6-3
Enclosure rating
IP60, mounted mechanicIP67, Encoder (IEC 60529)1)
Operating temperature range
–30 °C ... +70 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECLASS 5.0
27270590
ECLASS 5.1.4
27270590
ECLASS 6.0
27270590
ECLASS 6.2
27270590
ECLASS 7.0
27270590
ECLASS 8.0
27270590
ECLASS 8.1
27270590
ECLASS 9.0
27270590
ECLASS 10.0
27270613
ECLASS 11.0
27270503
ECLASS 12.0
27270503
ETIM 5.0
EC001486
ETIM 6.0
EC001486
ETIM 7.0
EC001486
ETIM 8.0
EC001486
UNSPSC 16.0901
41112113
