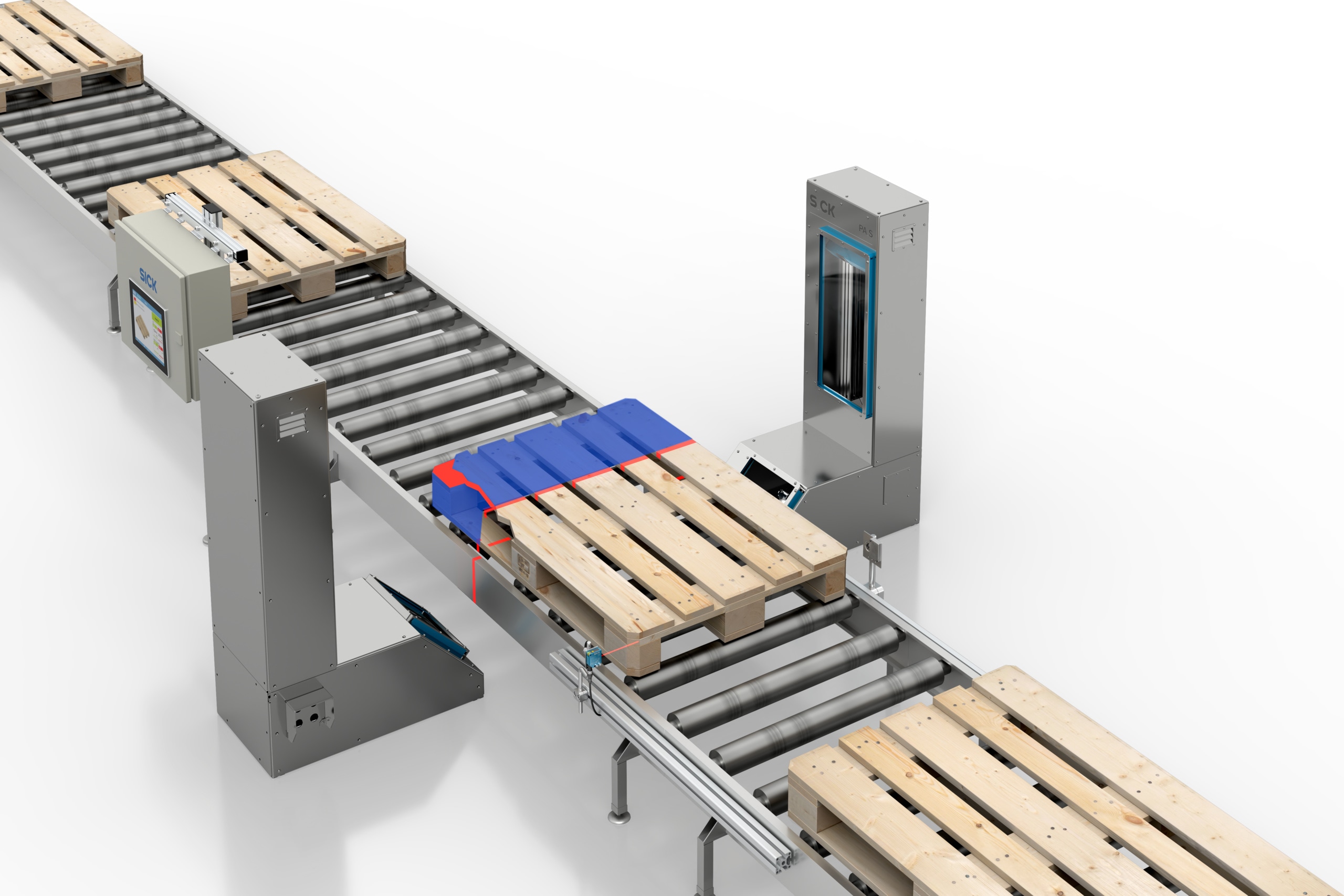

Quality control systems | Pallet Integrity Inspection System | PAIS-E4H0 | Variant: Heavy-Duty | Industries: 3D laser triangulation | Industries: CEP and freight
Variant
Heavy-Duty
Technology
3D laser triangulation
System features
Protective housing for use in challenging environmentsInspection of all sides of the pallet
Laser class
2M (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
Laser color
Red, visible, 660 nm, ± 10 nm
Supported pallets
2 default pallet types:Euro-pallet 1200x800 mmUK / Industrial Pallet 1200x1000 mmPlus possibility to create custom pallet types
Dimensions, system (L x W x H)
722 mm x 461 mm x 1,208 mm (Single tower)665 mm x 356 mm x 786 mm (Control cabinet)
Enclosure rating
Electrical cabinet: IP54Integrated components of scanning units: IP65/IP67Scanning units enclosure: IP201)
Supply voltage
230 V AC2)
Current consumption
0.6 A, rated current1.5 A, peak current
Power consumption
140 W, rated power345 W, peak power
Window material
Glass
Housing material
Stainless steel
Вес
81 kg, Single tower55 kg, Control cabinet10.4 kg, Cables
Typical object speed
0.5 m/s
3D profile resolution
Up to 0.6 mm/px
Minimum detectable defect
> 3 mm
Typical evaluation time
Approx. 1.5 s
Function
Service interface
Data transmission rate
1,000 Mbit/s
Encoder interface
RS-422 / TTL (DBS36E-BBCP02048)
Configuration interface
Web-Interface
Connection type
Wire terminals, conductors up to 2,5 mm² (for the power supply)
Digital inputs
3 (isolated)
Digital outputs
2 (isolated)
Ambient temperature, operation
0 °C ... +40 °C
Ambient temperature, storage
–10 °C ... +50 °C
Permissible relative humidity
5% ... 85 %, Non-condensing
Electromagnetic compatibility (EMC)
EN 61000-6-2:2005+AC:2005, EN IEC 61000-6-2:2019
Items supplied
1x left tower with stainless-steel housing1x right tower with stainless-steel housing1x electrical cabinet
ECLASS 5.0
27281001
ECLASS 5.1.4
27289090
ECLASS 6.0
27289090
ECLASS 6.2
27289090
ECLASS 7.0
27289090
ECLASS 8.0
27289090
ECLASS 8.1
27289090
ECLASS 9.0
27289090
ECLASS 10.0
27289090
ECLASS 11.0
27289090
UNSPSC 16.0901
52161523
