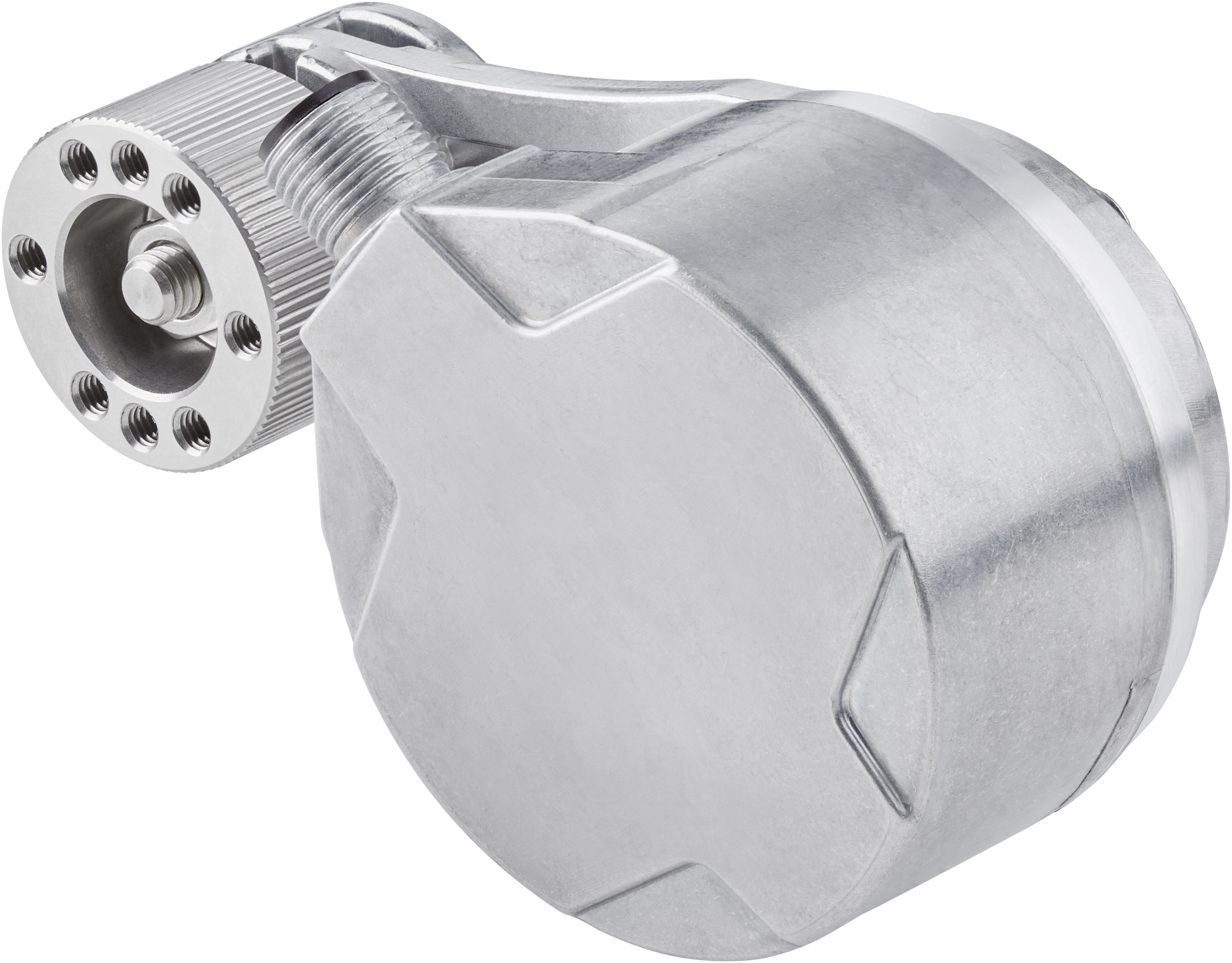

Measuring wheel encoders | MWS075 | MWS075-12M2AQC114X12 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 18 V ... 30 V, IO-Link, IO-Link V1.1 | Supply voltage: 18 V ... 30 V | Mounted encoder: AHS/AHM36, AHM36A-SCQC014x12, 1101537 | Connection type: Male connector, M12, 4-pin, universal | Resolution in pulses/mm: 82
Max. resolution (number of steps per revolution x number of revolutions)
14 bit x 12 bit (16,384 x 4,096)
Resolution in pulses/mm
82
Measuring increment (resolution in mm/pulse)
0.0121)2)
Repeatability
< 0.1 mm3)
Communication interface
IO-Link
Communication Interface detail
IO-Link V1.1
Programmable/configurable
✔
Connection type
Male connector, M12, 4-pin, universal
Supply voltage
18 V ... 30 V
Reverse polarity protection
✔
Measuring wheel circumference
200 mm
Measuring wheel surface
O-ring NBR701)
Mounting
Measuring wheel mounted at the front
Start up torque
< 1 Ncm
Operating torque
< 1 Ncm
Operating speed
≤ 6,000 min⁻¹
Bearing lifetime
3.6 x 10^8 revolutions
Maximum travel/deflection of spring arm
14 N with 14 mm spring travel
Recommended pretension
15 N At 10 mm deflection
Max. permissible working area for the spring (continuous operation)
± 3 mm
Recommended spring deflection
2 mm ... 13 mm
Service life of spring element
> 1.4 million cycles2)
Mounting position relative to the measuring object
Preferably from above, from below possible3)
Moment of inertia of the rotor
2.5 gcm²
Mounted encoder
AHS/AHM36, AHM36A-SCQC014x12, 1101537
Flange plates
BEF-FA-20-30-MWS075, 2145868
Mounted mechanic
BEF-MWS075-ARM, 2145180
Attached measuring wheel
BEF-MR010020R, 2049278
EMC
According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9
Enclosure rating
IP66 (IEC 60529)IP67 (IEC 60529)
Operating temperature range
–40 °C ... +85 °C
Storage temperature range
–40 °C ... +100 °C, without package
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27270790
ECLASS 6.0
27270790
ECLASS 7.0
27270790
ECLASS 8.0
27270790
ECLASS 9.0
27270790
ECLASS 10.0
27270790
ECLASS 11.0
27270707
ECLASS 12.0
27270504
ECLASS 13.0
27270504
ECLASS 14.0
27270504
ECLASS 15.0
27270504
ETIM 6.0
EC001486
ETIM 7.0
EC001486
ETIM 8.0
EC001486
ETIM 9.0
EC001486
ETIM 10.0
EC001486
UNSPSC 091201.0
39121527
UNSPSC 100501.0
39121527
UNSPSC 111201.0
39121527
UNSPSC 120901.0
39121527
UNSPSC 131201.0
39121527
UNSPSC 140801.0
39121527
UNSPSC 151101.0
39121527
UNSPSC 160901.0
39121527
UNSPSC 171001.0
39121527
UNSPSC 180801.0
39121527
UNSPSC 190501.0
39121527
UNSPSC 200601.0
39121527
UNSPSC 210901.0
39121527
UNSPSC 220601.0
39121527
UNSPSC 230701.0
39121527
UNSPSC 240301.0
39121527
UNSPSC 250901.0
39121527
UNSPSC 260801.0
39121527
