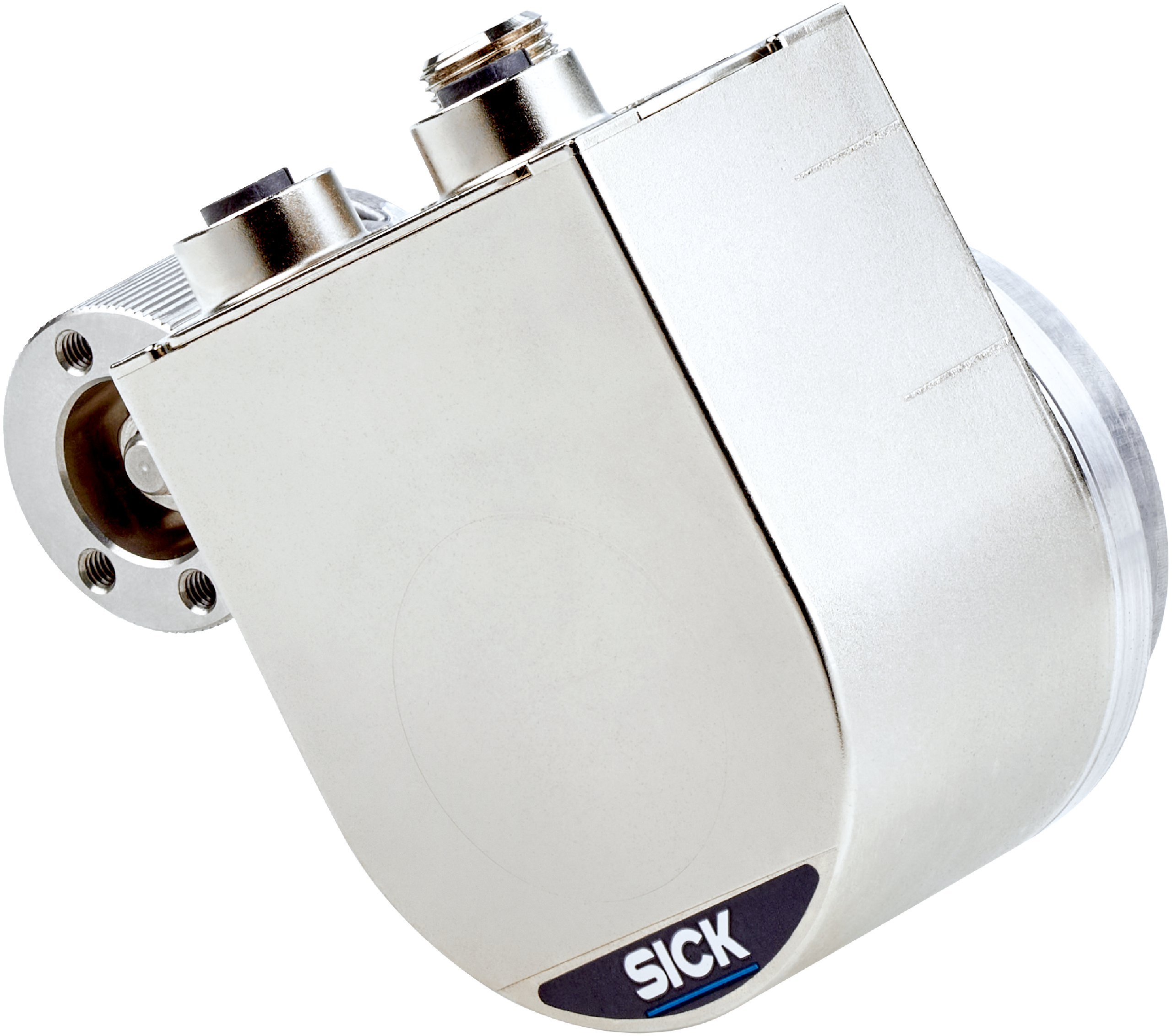

Measuring wheel encoders | MWS075 | MWS075-12C121P102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AP02000, 1064388 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 10
Pulses per revolution
2,000
Resolution in pulses/mm
10
Measuring increment (resolution in mm/pulse)
0.11)2)
Repeatability
< 0.1 mm3)
Communication interface
Incremental
Communication Interface detail
TTL / RS-422
Connection type
Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m
Supply voltage
4.5 V ... 5.5 V
Reverse polarity protection
✔
Short-circuit protection of the outputs
✔1)
Measuring wheel circumference
200 mm
Measuring wheel surface
O-ring NBR701)
Cable
PVC
Measuring wheel core
Aluminum
Start up torque
+ 0.9 Ncm
Operating torque
0.6 Ncm
Operating speed
6,000 min⁻¹2)
Maximum operating speed
8,000 min⁻¹3)
Bearing lifetime
2.0 x 10^9 revolutions
Maximum travel/deflection of spring arm
14 N with 14 mm spring travel
Recommended pretension
15 N At 10 mm deflection
Max. permissible working area for the spring (continuous operation)
± 3 mm
Recommended spring deflection
2 mm ... 13 mm
Service life of spring element
> 1.4 million cycles4)
Mounting position relative to the measuring object
Preferably from above, from below possible5)
Moment of inertia of the rotor
0.65 gcm²
Mounted encoder
DBS36/50, DBS50E-S5AP02000, 1064388
Mounted mechanic
BEF-MWS075-ARM, 2145180
Attached measuring wheel
BEF-MR008020R, 2055223
EMC
According to EN 61000-6-2 and EN 61000-6-3 (class A)
Enclosure rating
IP65
Operating temperature range
–20 °C ... +85 °C
Storage temperature range
–40 °C ... +100 °C, without package
