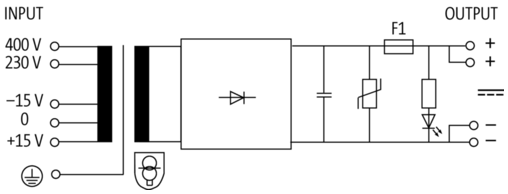

The MTPS series comprises single-/two-phase power supplies/rectified power supply units, incorporating safety isolating transformers, with protection class I...
Вес
1,280 kg
Страна происхождения
CZ
Обозначение модели
MTPS 0,5-230-400+-15V/24
Security level
SELV
Частота сети
50 ... 60 Hz
Nominal input voltage AC
230 V … 400 V
Input voltage 1 AC min.
195,5 V
Input voltage 1 AC max.
264,5 V
Input voltage 2 AC min.
340 V
Input voltage 2 AC max.
460 V
Nominal current AC
0.1 A @ 230 V,0.06 A @ 400 V
Characteristic back-up fuse
Inertia
Fuse protection 1 primary side external
0.125 A @ 230 V AC
Fuse protection 2 primary side external
0.1 A @ 400 V AC
Регулируемое выходное напряжение
No
