Murrelektronik
MSUD Xtreme double valve A-18mm with cable
Цена без НДС
Запросить цену

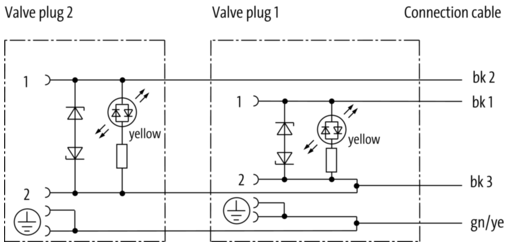

Form A (18 mm) 12...24 V AC/DC LED and suppression 3-pole Bridged PE without cable sleeves Connection cable L = 150 mm Further cable lengths on request....
Вес
1,344 kg
Страна происхождения
CZ
Обозначение модели
MSKL3-636_150-KL3-637_20.0-S72
Cable length
20,00 m
Operating voltage AC min.
12 V
Operating voltage AC max.
24 V
Operating voltage DC min.
12 V
Operating voltage DC max.
24 V
Current consumption max.
8 mA
Pollution Degree
3
Rated surge voltage
0,8 kV
Material group (IEC 60664-1)
I
Operating temperature min.
-25 °C
Operating temperature max.
85 °C
Additional condition temperature range
depending on cable quality
