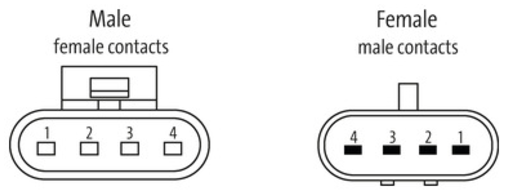

MSC SuperSeal male/MSC SuperSeal female
Price excluding VAT
Request a quote
Xtreme - Outdoor Male straight – female straight max. 24 V DC 4-pole without components Plastic housings with good resistance against chemicals and oils....
Weight
0,170 kg
Country of origin
DE
Model designation
MSTGL0-TF-T514_0.6-S72
Cable length
0,60 m
Family construction form
AMP SuperSeal 1.5
No. of poles
4
Mounting method
inserted
Material contact
Copper alloy
Coating contact
tin-plated
Degree of protection (EN IEC 60529)
IP67, IP69K
Operating voltage DC max.
24 V
Current operating per contact max.
7 A
Status indication LED
No
Additional condition protection degree
inserted
Additional suppressor
without components
