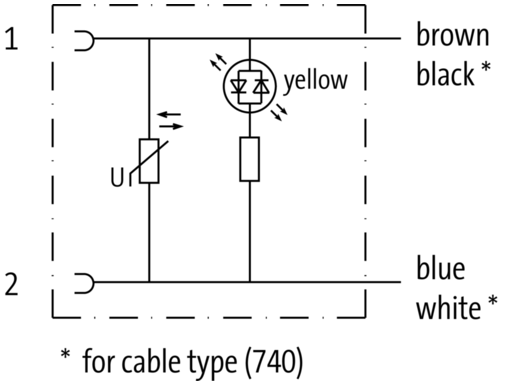

Female straight 10...24 V AC/30 V DC LED and VDR Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should...
Poids
0,039 kg
Pays d'origine
DE
Désignation du modèle
MSUDK-TAB*X-750_0.3
Cable length
0,30 m
Family construction form
MJT
No. of poles
2
Gender
female
Mounting method
inserted
suitable for corrugated tube (internal Ø)
10 mm
Degree of protection (EN IEC 60529)
IP65
Stripping length (jacket)
50 mm
Operating voltage AC min.
10 V
Operating voltage AC max.
24 V
Operating voltage DC
30 V
Current operating per contact max.
4 A
