Xtreme - Outdoor Male straight – male straight 6 ... 32 V AC/DC 4-pole without components with cable sleeves Compatible with: Deutsch DT06-4S Plastic...
Weight
0,326 kg
Country of origin
DE
Model designation
MSTD4L0-TD4-T260_2.5-S72
Cable length
2,50 m
Family construction form
Amphenol AT06-4S

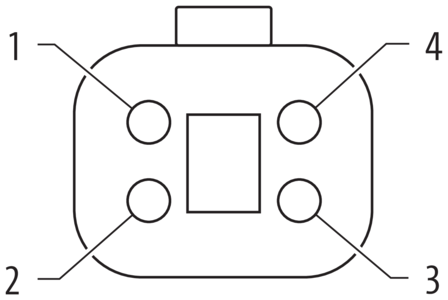

No. of poles
4
Mounting method
inserted
suitable for corrugated tube (internal Ø)
13 mm
Material contact
Copper alloy
Coating contact
nickel plated
Operating voltage AC min.
6 V
Operating voltage AC max.
32 V
Operating voltage DC min.
6 V
Operating voltage DC max.
32 V
Current operating per contact max.
4 A
