Xtreme - Outdoor Female straight – male straight Stainless steel 1.4305 (V2A/M12) 6...230 V AC/DC 3-pole without components compatibel to Deutsch DT06-4S...
Poids
0,285 kg
Pays d'origine
DE
Désignation du modèle
MSTD4pQL0-BQ-Q564_5.0-S72
Cable length
5,00 m
Family construction form
Amphenol AT06-4S

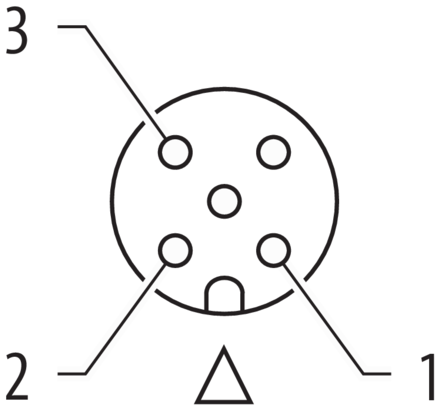

No. of poles
3
Coding
A
Width across flats
SW14
suitable for corrugated tube (internal Ø)
10 mm
Material
PA
Degree of protection (EN IEC 60529)
IP68
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Operating voltage AC min.
6 V
Operating voltage AC max.
230 V
