Xtreme - Outdoor Male straight – female straight 6...230 V AC/DC 2-pole without components Compatible with: Deutsch DT06-2S Plastic housings with good...
Weight
0,126 kg
Country of origin
DE
Model designation
MSTEL0-TD-G754_2.5-S72
Cable length
2,50 m
Family construction form
Amphenol AT04-2P

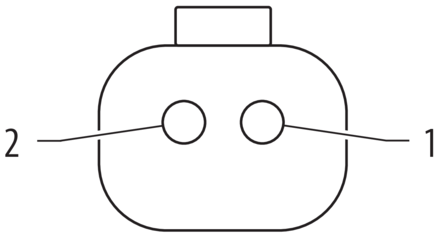

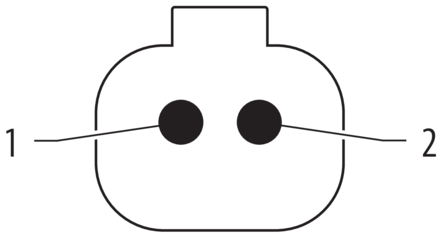

No. of poles
2
Mounting method
inserted
suitable for corrugated tube (internal Ø)
10 mm
Material contact
Copper alloy
Coating contact
nickel plated
Operating voltage AC min.
6 V
Operating voltage AC max.
230 V
Operating voltage DC min.
6 V
Operating voltage DC max.
230 V
Current operating per contact max.
8 A
