Murrelektronik
M8 male 0° A-cod. / MSUD valve plug BI-11mm 180°
Price excluding VAT
Request a quote

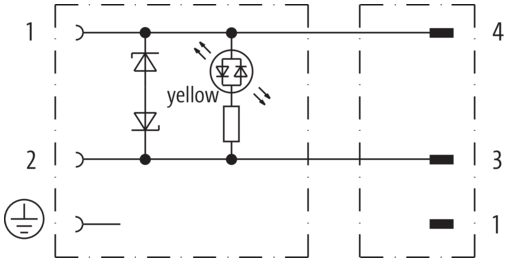

MSUD Form BI (11 mm) – M8, male straight 3-pole 24 V AC ±20% / DC ±25% Z-Diode + LED Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request...
Weight
0,082 kg
Country of origin
CZ
Model designation
MSML3-H-R633_1.5
Cable length
1,50 m
Family construction form
M8
No. of poles
3
Mounting method
inserted, screwed
Threaded hole
M8 x 1
Tightening torque
0,4 Nm
suitable for corrugated tube (internal Ø)
6,5 mm
Material
PBT
Material contact
Copper alloy
Coating contact
gold plated
Width across flats
SW9
Operating voltage AC
24 V
