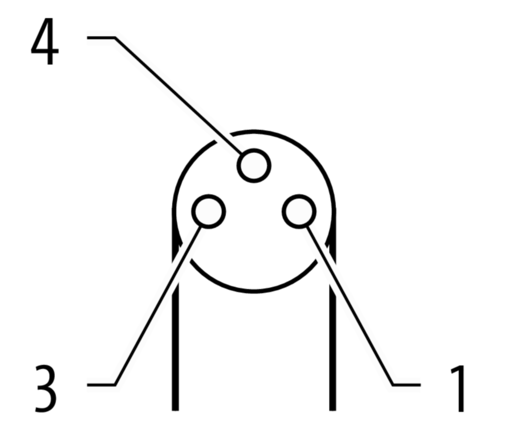

Female 90° M8, 3-pole with solder pins Connection cross section: max. 0.25 mm²
Weight
0,040 kg
Country of origin
DE
Model designation
MSG-R
Family construction form
M8
Degree of protection (EN IEC 60529)
IP67
Operating voltage AC max.
60 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
Rotation option
90° (4 outlet directions)
Connection cross section max.
0,25 mm²
Additional condition protection degree
inserted, screwed
Height
28 mm
Width
18,5 mm
Depth
12 mm
Clamping range min.
3,5 mm
