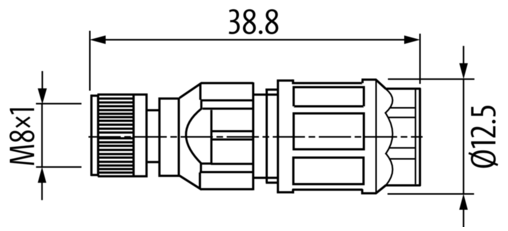

IDC terminals Female straight M8, 3-pole Connection cross section: 0.25...0.5 mm²
Weight
0,007 kg
Country of origin
DE
Model designation
MSFL0-AC-R IDC 0,25-0,5mm²
Family construction form
M8
No. of poles
3
Gender
female
Mounting method
Hexagonal screw, Hexagonal nut
Cable outlet
straight
Material
PA
Material contact
Copper alloy
Degree of protection (EN IEC 60529)
IP67, IP65
Operating voltage AC max.
48 V
Operating voltage DC max.
60 V
Current operating per contact max.
4 A
Connection cross section min.
0,25 mm²
