Murrelektronik

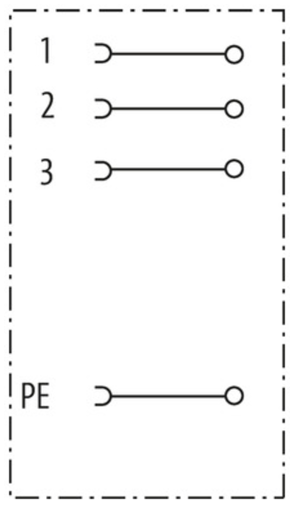

M12 Power female 0° S-cod. screw terminal
Hind käibemaksuta
Küsi pakkumist
Female straight M12, 4-pole S-coded Screw terminals Sealing range (cable Ø): 8...10 mm Plastic housings with good resistance against chemicals and oils. The...
Kaal
0,027 kg
Päritoluriik
DE
Mudeli tähistus
MSWBSL0-T
Family construction form
M12P
No. of poles
4
Coding
S
Gender
female
Mounting method
inserted, screwed, Shaking protection
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Cable outlet
straight
Material contact
CuZn
Operating voltage AC max.
600 V
Operating voltage DC max.
600 V
Current operating per contact max.
12 A
