DeviceNet, CANopen Flange male M12, 5-pole Shielded Product fulfills requirements according to UN/ECE R118 Rear mounting Further cable lengths on request....
Weight
0,317 kg
Country of origin
DE
Model designation
MSAFH-U803_5.0
Family construction form
M12

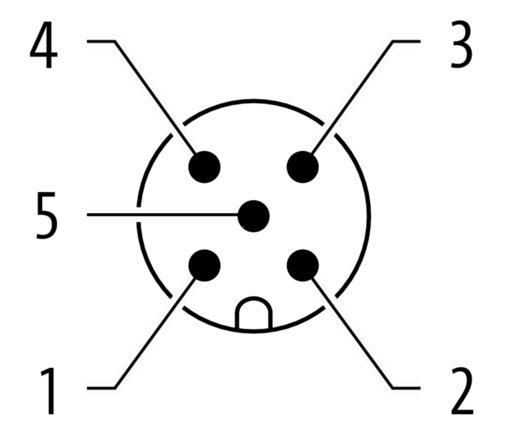

No. of poles
5
Coding
A
Mounting method
Schraubgewinde
Threaded hole
M12 x 1
Tightening torque
0,6 Nm
Material
Brass
Material contact
Copper alloy
Coating contact
gold plated
Degree of protection (EN IEC 60529)
IP67
Stripping length (jacket)
20 mm
Operating voltage AC max.
125 V
