Murrelektronik
M12 MALE ON TOP OF MSUD VALVE PLUG FORM BI 11MM
Prix hors TVA
Demander un devis
Form BI (11 mm) – M12, connector top entry 24 V AC ±20% / DC ±25% LED and suppression 3-pole Plastic housings with good resistance against chemicals and...
Poids
0,030 kg
Pays d'origine
CZ
Désignation du modèle
MSLL3-A-W
Family construction form
M12
Tightening torque
0,6 Nm
Operating voltage AC
24 V
Operating voltage AC min.
19,2 V
Operating voltage AC max.
28,8 V
Operating voltage DC
24 V
Operating voltage DC min.
18 V
Operating voltage DC max.
30 V
Current operating per contact max.
4 A
Status indication LED
yellow
Mounting set
M3x31

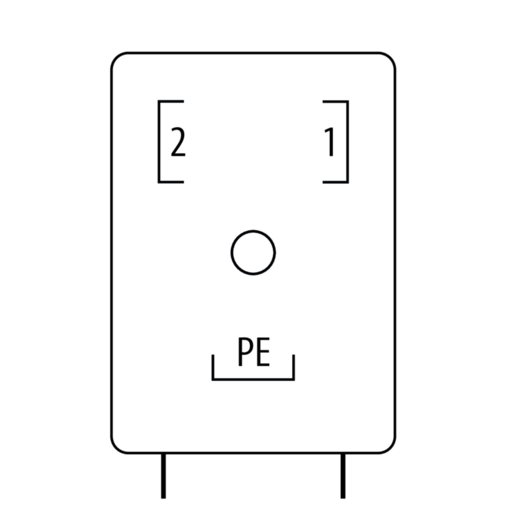

No. of poles
2 + PE
